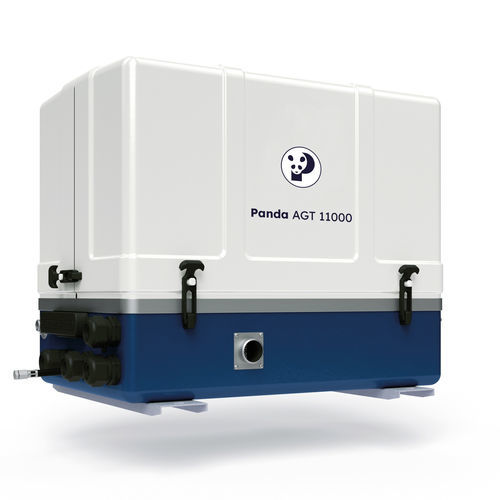

Diesel generator set AGT-DC 11000

nautical400 Hzwith integrated battery charger

Product Overview
The Panda AGT-DC 11000-48V provides direct current output for fast, efficient battery charging without the need for an external charger. With direct DC delivery and dynamic engine speed control, charging current is transferred with minimal loss while engine speed adapts to demand, reducing fuel use and emissions. The unit is HVO-ready (EN15940) and designed for modern system integration with CAN-BUS compatibility for onboard communication.

Your Advantages at a Glance

• Direct DC Output
  No separate battery charger required
• Fast & Efficient Charging
  High charging current with low energy loss
• Variable Speed Operation
  Engine speed adapts to demand for reduced fuel consumption and emissions
• Compact & Lightweight
  Suited to installations with limited space
• HVO-Compatible
  Operates with EN15940-compliant fuels
• System Integration Ready
  CAN-BUS support (SAE J1939 / NMEA 2000)

Perfect Choice If You...

• Need to charge batteries directly and efficiently from a compact generator
• Operate a modern hybrid or electric system requiring DC integration
• Have limited installation space and prefer minimal installation complexity
• Seek a lower-emission energy supply compatible with sustainable fuels

General Technical Data
Model: Panda AGT-DC 11000-48V PMS
Generator Type: Hybrid Power
Generator Family: 11000
Generator Version: PMS
Article Number: 0030635
Area of Application: Marine (M)
Frequency [Hz]: 400
Generator Manufacturer: Fischer Panda GmbH
Isolation Class Windings: H
Nominal Speed [rpm]: -
Voltage Regulation: fpControl
Voltage Tolerance: ±3V

Electrical Winding
Engine Speed [rpm]: Request
Continuous Performance [kW]: 10.9
Constant Current rate [A]: Current dependent upon voltage
Peak Current rate [A]: Current dependent upon voltage

Engine
Engine Manufacturer: Kubota
Engine Type: KU D902
No. Cylinders: 3 Cylinder Diesel
Displacement [cm3]: 898
Starter System: 12 V

Sound Insulation Capsule (Sound Shield)
Version: GFK 3D
Sound Cover Type: GFK
Sound Insulation Material: 3D
Dimensions Housing L x W x H [mm]: 660 x 580 x 616
Total Weight of Generator with Capsule [kg]: 170
Sound levels [dBA] 7m / 5m / 1m: 54 / 64 / 68

Technical specifications

• Model designation: Panda AGT-DC 11000-48V PMS
• Generator type: Hybrid Power
• Generator family: 11000
• Generator version: PMS
• Article number: 0030635
• Application area: Marine (M)
• Frequency: 400 Hz
• Generator manufacturer: Fischer Panda GmbH
• Winding insulation class: H
• Voltage regulation: fpControl
• Voltage tolerance: ±3V
• Continuous performance: 10.9 kW
• Engine manufacturer: Kubota (KU D902)
• Engine displacement: 898 cm3
• Cylinders: 3 (diesel)
• Starter system: 12 V
• Sound shield: GFK 3D, dimensions 660 x 580 x 616 mm
• Total weight with capsule: 170 kg
• Sound levels (7m/5m/1m): 54 / 64 / 68 dBA
