Offshore patrol multi-purpose vessel MULTIPURPOSE

offshore patrol multi-purpose vessel
offshore patrol multi-purpose vessel
Add to favorites
Compare this product


offshore patrol
Other characteristics

143 m (469'01")

Passenger capacity

171 unit

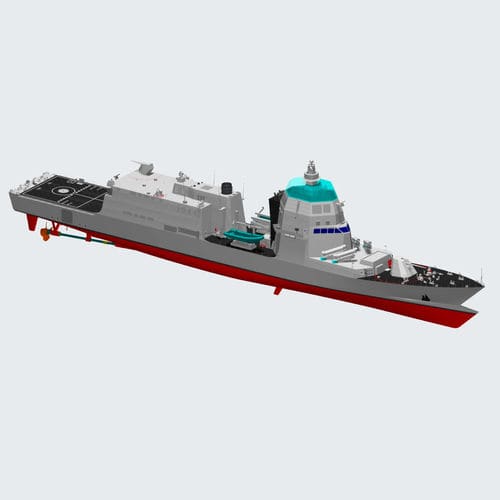

The Multipurpose Offshore Patrol Vessel (PPA) is a highly flexible ship lhat can accomplish multiple functions. from patrol with sea rescue capability to Civil Protection operations, and - in ils most highly cquipped version - act as a first line combatant. The ship can hâve different combat System configurations: starting from a “light" version for the patrol task, integrated for self-defence, to a “fuU“ version, cquipped for a complété defence ability. The vessel is also capable of operating high-speed vessels such as RHIBs (Rigid Hull Inflatable Boats) up to 11 meters long, through its latéral crânes or its hauling ramp located astern. MAIN CHARACTERISTICS Length overall abt. 143.00 m Length between perpendiculars 133.00 m Beam 16.50 m Depth 10.50 m Speed (max/range) 32/15 kn Range 5,000 nm Endurance 30 days Crew 171 people ENERGY AND PROPULSION SYSTEMS Propulsion system CODAG CC (2 x DE + 1 TAG/2 x FCPP) Generating sets 4 + 2 Shaft Generators / Electric Motors HELO CAPABILITIES Flight deck for SH90 or EH101 Hangar for 2 SH90 or 1 EH101 COMBAT SYSTEM 1 Cockpit Control System 1 Internal Networking System 1 Combat Management System (CMS) 1 Integrated Int/Ext Communication System 1 Integrated Navigation System 2 Navigation Radars 1 Dual Band (C-X) Radar 1 IFF Interrogator/Transponder System 1 IR Surveillance System (2 turrets) 2 Secondary Caliber Guns - 25 mm 2 Long Range Acoustic Devices 1 EW System (RESM/CESM) 1 Fire Control System (ADT) 1 Quick Point Device System 1 Surface Anti Air Missile SAAM-ESD System 1 Anti-Ship Missile System TESEO* 1 Main Caliber Gun - 127 mm – Vulcano 1 Medium Caliber Gun - 76 mm SP - Davide
