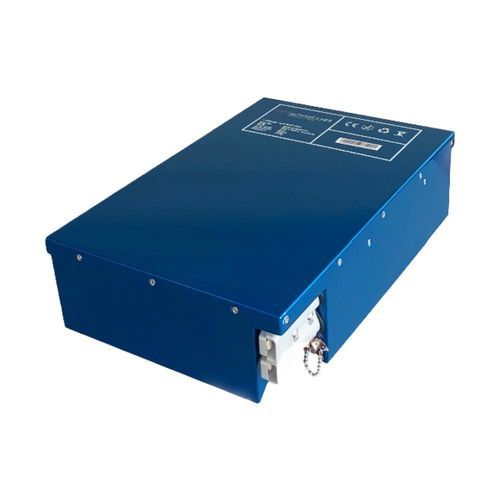

Marine battery 600-000019

12 V24 V48 V

Product Overview
Modular Battery System Scalable, Safe, and Cost-Effective Power Solution. Power up your energy system with a versatile and scalable battery solution designed for performance, safety, and affordability. Whether you're building a custom off-grid setup, upgrading an industrial system, or scaling solar storage, this modular system delivers.

Safe & Certified

• Built to the highest standards
• CE certified
• UN38.3 compliance for transportation safety
• Peace of mind from installation to operation

Flexible Voltage & Power

• Scalable in series up to 48V
• Expand in parallel up to 280kW
• Perfect for everything from compact installations to large-scale energy storage systems

Smart Rack System for 12V Batteries

• Choose a rack configuration for 1, 3, or 4 batteries tailored to your needs
• Quick and easy battery exchange
• Minimizes downtime and maximizes convenience

Cost-Effective, Attractive Pricing

• Industry-grade performance at a competitive price
• Smart energy accessible without compromising on quality

Technical Specifications

• Voltage: 2 in series is possible to get 24V, unlimited parallel
• Certifications: CE, UN38.3
• Chemistry: LFP
• Nominal Voltage: 12.8 VDC 150A
• Energy: 2.0kWh
• Cycle Life @ 80% DoD: 3500 @0.2C/0.33C
• Max Continuous Charge: 60A
• Max Charge: 70A
• Max Continuous Discharge: 120A
• Peak Discharge: 200A<1S
• Temperature Range: -10°C to 50°C
• Battery Case: Stainless Steel
• Dimensions (LWH): 300 x 420 x 115 mm
• System Mount: Racking System
• Weight: 21 kg
• Communication mode: CAN bus 250k
• IP Rating: IP 54
• General Warranty: 2 Years, 3 years an option
• Cycle life Warranty: 5 Years
• Ideal Working Temperature: 5°C to 45°C
