Propulsion engine Falcon

outboardelectricboating

Product Overview

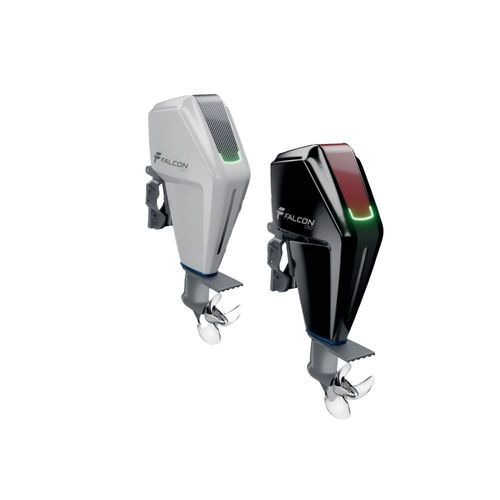

Falcon Outboard is a next-generation electric outboard system designed for commercial, recreational, and specialty marine applications. This high-performance unit delivers continuous, reliable power with exceptional maneuverability, all in a compact and lightweight package.

With continuous power ranging from 130 kW to 230 kW and torque between 310 to 525 Nm, the Falcon Outboard provides smooth, responsive performance across a wide range of vessels. Operating on 400–850 VDC, it supports a wide voltage range and delivers high efficiency at every speed.

The system is built for sustained use, running at 3600–4000 RPM continuous motor speed, with a propeller-optimized output of 3000 RPM. The integrated 360° rotating propeller hub offers superior control and agility, making docking, turning, and station-keeping easier and more precise than ever.

Despite its power, the system is remarkably lightweight, starting at just 130 kg, and features a durable, water-cooled design that keeps the motor running at optimal temperature even in demanding marine environments.

Key Features

• Continuous power: 130–230 kW
• Torque: 310–525 Nm
• Voltage range: 400–850 VDC
• Continuous motor speed: 3600–4000 RPM
• Optimized propeller ratio: 3000 RPM
• 360° rotating propeller hub for full maneuverability
• Compact design starting at 130 kg
• Water-cooled for thermal stability and performance

Benefits
Built with marine-grade materials and engineered for efficiency, this outboard offers a powerful, clean alternative to traditional combustion systems with lower maintenance, zero emissions, and instant torque on demand.

Specifications Table
Voltage
400 - 850 VDC
Weight
from 130 kg
Continuous power
130 kW - 230 kW, 310 - 525 NM
Continuous motor speed
3600 - 4000 RPM
Propeller ratio
3000 RPM
Propeller hub
360° rotating

System Components (Optional/Compatible)

• Push Button Switch: Marine-grade, waterproof, corrosion-resistant, available in various LED colors and icons. Diameter: 22 mm (19 mm on request), Max Voltage: 250 VAC/50 VDC, Max Current: 5 A (20 A on request), Function: latching or momentary.
• Emergency Stop: Fail-safe, weatherproof, IP65/IP69K, Max Voltage: 250 VAC, Max Current: 8A, Variants: NO NC / NO NO / NC NC.
• Charger: Max output power: 22 kW, Input voltage: 85–264 VAC, Output voltage: 70–135 VDC, Max output current: 35 A, IP67, CE certified.
• Top Mounted Double Throttle: Dual levers, stainless steel, CAN-enabled, 5 V DC, Weight: 3.8 kg.
• Top Mounted Single Throttle: Stainless steel, hall-effect sensing, CANopen, IP67, Weight: 2.3 kg.
• Side Mounted Single Throttle: Stainless steel, CAN-enabled, 5 V DC, Weight: 1.1 kg, Mounting hole: 65.2 mm.
• Display: Raymarine Axiom 9, 9-inch touchscreen, 1024×768 px, IPX6/7, Power consumption: < 15 W, Weight: 1.8 kg.
• PLC Control System: Modular, DIN rail, IP66/67, supports Ethernet/IP, Modbus TCP, Profinet, OPC UA.
• Battery Bank: Modular, marine-grade, maintenance-free, scalable from 1 kWh to 100 kWh+, integrated management and safety features.
• Battery/String Controller: Monitors voltage, current, temperature, IP66/67, CANbus/NMEA 2000, modular expansion.

Characteristics / Technical Specifications

• Continuous power: 130–230 kW
• Torque: 310–525 Nm
• Voltage range: 400–850 VDC
• Continuous motor speed: 3600–4000 RPM
• Propeller ratio: 3000 RPM
• Propeller hub: 360° rotating
• Weight: from 130 kg
• Water-cooled design
• Marine-grade materials
• Zero emissions, instant torque
