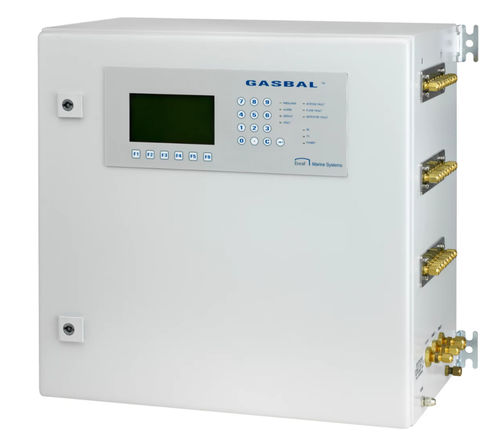

Gas detector GASBAL™

for shipsballastfor tank

The GASBAL™ is a suction based gas detection system suitable for detecting unwanted gas formation in Ballast Tanks, Dry Void Spaces and Pumo Rooms. What Is It? The GASBAL™ system is designed to detect and analyze gas concentration in enclosed spaces such as ballast tanks, voids or dry spaces. This gas detection system can be installed on board tankers, OBOs, offshore vessels and rigs and any other ship types requiring empty space gas detection. Features and Benefits: Large capacity: 24 suction channels +6 stand-alone Analyzing up to 7 different gases Large display unit Protection valves on suction pipes, reduce risks of water being pumped into the electronics Digital connection with ballast gauging system closes the conduits automatically when water starts pouring in Single-source tank gauging and safety Special Features: Possibility to combine sampling method and local gas sensors Modbus RTU communication Protocol 2 digital RS485 communication ports Remote control unit Option: Analog transmitter scanning How Does It Work? The GASBAL™ consists of two main units: An analyzing unit, including up to seven different gas sensors and up to 24 input channels for sampling and 6 channels for 4-20mA inputs for external sensors, A control unit for local and/or remote operation, fitted with an LCD display and a keyboard allowing set up, operation, checking and maintaining the GASBAL™ equipment. The system scrolls each input using suction pumps and activates an alarm if the gas concentration is over the pre-set value. Two digital RS485 ports allow control and communication with any host computers.
