Level sensor HERMetic UTImeter Rtex

shipsfor storage tankshand-held

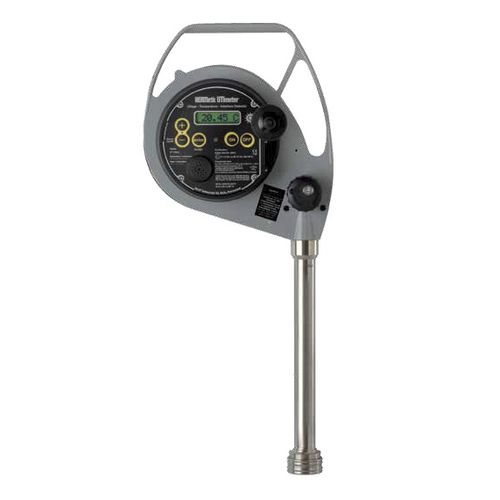

​Honeywell’s HERMetic UTImeter Rtex is a portable electronic liquid level gauge designed for gauging petroleum products under restricted conditions. It is used for custody transfer, cargo control measurement and free water detection on marine vessels. What Is It? ​HERMetic UTImeter Rtex offers continuous temperature reading, ullage and oil/water interface level detection. The unit is used for custody transfer, cargo control measurement and free water detection on marine vessels. Connected to a HERMetic vapor control valve fixed on the tank, the HERMetic UTImeter Rtex permits operation under restricted conditions. It comes with easy access for battery exchange, and can be fitted with interchangeable adaptors for connection on different vapor control valves. The tape cleaning devices, window wiper and tape protection on all units are standard parts. HERMetic UTImeter Rtex enables three measurements in a single operation: Ullage level measurement Temperature verification Oil-water interface level identification. How Does It Work? ​The sensor of HERMetic UTImeter Rtex is calibrated once at the factory and does not require subsequent calibration. The temperature probe is an RTD element and its characteristics are stored inside the sensor. The sensor sends true temperature values to the electronic package. Therefore, changing a sensor or a tape does not require a new calibration. The unit complies with a host of regulations, including: IMO (Solas 74, MARPOL 73/78) ISO (4512, 3170, 4268) API (MPMS Chap 3.1A, MPMS Chap 7, MPMS Chap 8.1, MPMS Chap 17.11 ) IP (PMM Part III-1, PMM Part IV) EC Directive 89/336/EEC (EMC) EC Directive 94/9/EC (MED)
