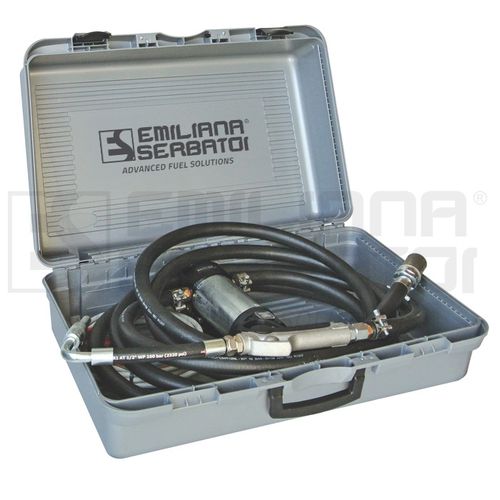

Portable unit for lubricants transfer, fitted with battery pump, 12 V or 24 V, suction and delivery hoses, filter and fuel nozzle.
Thanks to its small size, reliability and ready-to-use configuration, it is especially useful when fuel must be transferred or dispensed safely having only battery power on hand.
Tipical fields of application are garage and auto repair shop.
Performances and Dimensions:
Power supply: 12 V DC or 24 V DC.
Consumption: 22 Amp (12 V DC) - 11 Amp (24 V DC).
Max flow rate: 12 L/min.
Suction head: up to 1,5 meters.
Working temperature: -20°C / +60°C.
Duty cycle: 30 min.
Dimensions: 600x420x230h mm.
Technical Features:
Self-priming volumetric rotary vane pump, with cast-iron casing.
Fixed-brush motor with permanent-magnet stator.
Terminal board for switches and circuit-breakers.
Battery cable, 4 m length, complete with clamps for battery connection.
Delivery fuel hose, 3 m length, size 3/4”, suitable for lubricants.
Aluminium manual nozzle.
Suction fuel hose, 3 m length, size 3/4”, suitable for lubricants.
Bottom suction filter.
Manual fuel nozzle.
