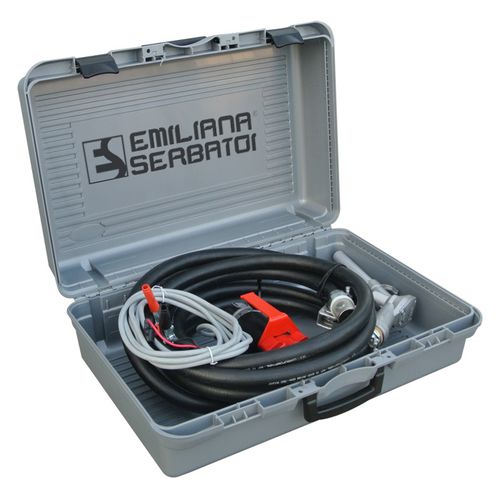

Portable unit for transferring Diesel fuel, fitted with battery electropump.
Thanks to its small size, reliability and ready-to-use configuration, it is especially useful when fuel must be transferred or dispensed safely having only battery power on hand, as in construction sites, on boats and in agriculture.
Technical Features
Self-priming rotary vane pump, with cast-iron casing.
Fixed-brush motor with permanent-magnet stator.
Terminal board for switches and circuit-breakers.
4-meter cable with clips for connection to battery.
Antistatic fuel hose, 3 meters length.
Aluminium manual nozzle.
3 m suction hose with bottom-filter.
Performance Specifications
Power supply: 12V DC or 24V DC.
Consumption: 22 Amp (12V DC) - 11 Amp (24V DC).
Max flow rate: 38 l/min.
Suction capacity: up to 3 meters.
Working temperature: -20°C / +60°C.
Duty cycle: 30 min.
