Radio antenna STA 150 NDB
DGPSfor shipsvertical

radio antenna
radio antenna
radio antenna
Add to favorites
Compare this product


Characteristics

Network
radio, DGPS
Application domain
for ships
Type
vertical, omnidirectional
Other characteristics
professional, self-supporting

Description

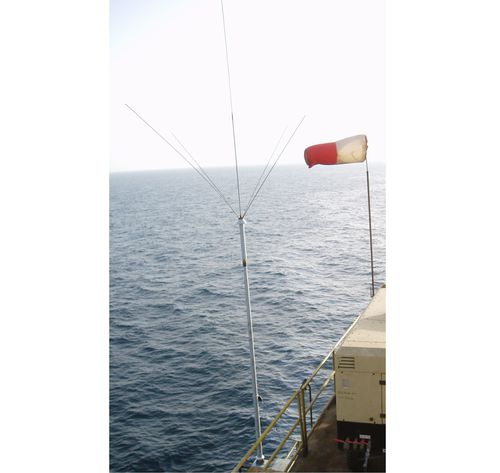

The STA 150 NDB is a self-supporting mast antenna for use on vessels, offshore platforms, airports, heliports, etc. The mast does not need guys or stands. It replaces costy and spacious wire arrangements and can be installed on room limited sites. Frequency ranges according to customer specification Please note that the frequency range defining coil can even be exchanged later if necessary Max. RF-load 225 Watts CW Polarization vertical Characteristic omnidirectional Internal base injection or external lead-in Material mast: glassfibre reinforced, polyester antenna base: G-AIMg3Si (seawater resistent aluminium) Colour grey Height 14.5 m (alternative available model NDB 115: 11.5m) Weight approx. 80 kg Max. bending moment 1200 daNm (at 150 km/h wind and 8 m/s2 acceleration) Temperature - 40° … + 80° C Highly resistent against icing, mould, salt water, UV, etc.
