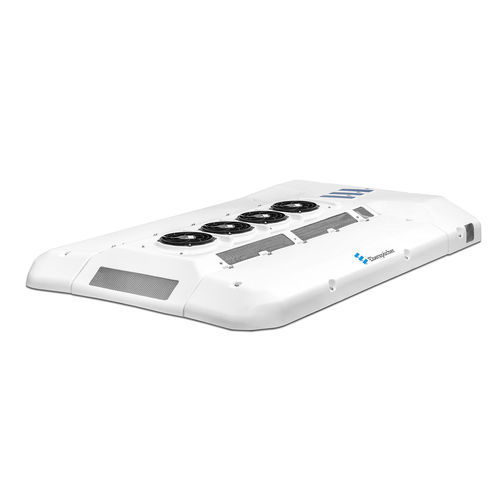

Boat air conditioner AC135
reversible

Add to favorites

Compare this product

Characteristics

Product family: AC135

Compact roof footprint – maximizes available space on the vehicle roof
Lightweight design with high cooling performance
Uniform interface for all buses for similar performance classes
Flexible return-air grille options: side or centre placement
Split covers for simplified maintenance access
Cost-effective installation
Suitable for all climate zones
Operating temperature range: –15 °C to +55 °C
Available with various refrigerants
Optional integrated battery cooling – available for all-electrical and heat-pump variants

Product family: AC136-435 HP

Modular system
System combines heating and cooling in a single device – reversible refrigerant circuit
Fast and easy installation on the bus roof thanks to modular design
For use in all climate zones
Side return air grille
Condenser suitable for tropical conditions in cooling mode
Tried and tested components in Eberspächer products, such as brushless 24 V DC fans and blowers

Maximum energy efficiency (AC136-435 HP)

Heat generation is up to three times more efficient than with electrical additional heater
Heat exchangers designed to ensure maximum efficiency
Large-diameter fans increase MCHX efficiency with reduced power consumption
Available with chilled water production for battery thermal management solutions
Up to 100% fresh air supply
Optional single and dual channel power inverters for operation with HV DC power supply
Optimized efficiency (especially in heating mode down to -5 °C) for maximum bus range
Available with optional rooftop water heater for operation at lower ambient temperatures
Variable speed fans, blowers, and compressors to further optimize system efficiency

Product family: AC136 G4 AE

Maximum energy efficiency (AC136 G4 AE)

MCHX condenser covers a large cooling-capacity range using a small quantity of refrigerant
Fans with optimized blade geometry enable high air flow with low power consumption
Variable cooling output
100% fresh air for optimal ventilation and 'free cooling' options in spring and autumn

Environmentally friendly and lifecycle benefits

Reduced fuel consumption through lower weight
Noise reduction and lower energy consumption thanks to highly efficient condenser fans
Brushless fan motors ensure long running times for condenser and evaporator fans
Block connections as per automobile standards ensure high tightness

Technical specifications

Operating temperature range: –15 °C to +55 °C (AC135)
Heating and cooling combined options (reversible refrigerant circuit for heat pump variants)
Optional integrated battery cooling and chilled water production for battery thermal management
Available refrigerants: various types (as per product variant)
Modular roof-mounted design for fast and cost-effective installation
Return-air grille options: side or centre placement
Condenser variants suitable for tropical conditions
Brushless 24 V DC fans and blowers (reliable, long-life components)
Flat-tube MCHX technology for high efficiency and low refrigerant charge (AC136 G4 AE)
Optional HV DC power inverters (single and dual channel) for operation with high-voltage DC supply
Optional rooftop water heater for low ambient temperature operation
Variable speed components (fans, blowers, compressors) for optimized system efficiency
