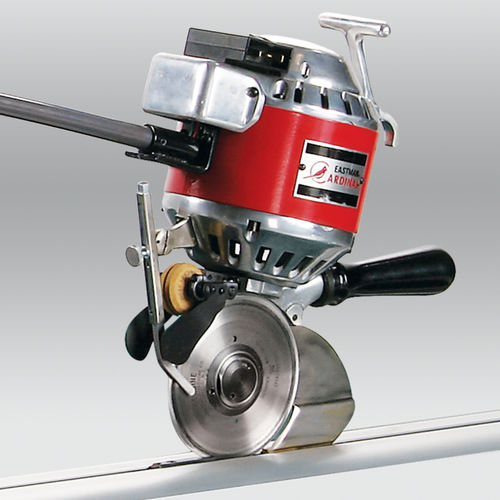

Rotary knife tool for cutting table (for boatyards and shipyards) Falcon® 548 / 534

Eastman equips Cardinal models 548 and 534 with a special baseplate and handle to work with the Falcon guide track. The 534 Falcon is suited for light woolens, cotton, silk and synthetics, providing a .5 inch (1.27 cm) of cutting depth. The 548 Falcon is the choice for woolens, canvas and outerwear materials featuring a cutting capacity of .5 in. - 1 in. (1.27cm - 2.54cm). Utilizes the Eastman Cardinal Round Knife models with a special baseplate and handle Offers increased cutting capacity Higher torque motor for effortless operation Cutting head moves easily across the track, reducing operator stress Table Widths Available 48 – 144 in. (1.22m – 3.66m) Motors 110v, 1ph, 50/60Hz 220v, 1ph or 3ph, 50/60Hz Horsepower Falcon 534 0.20hp, 1ph 0.34hp, 3ph Falcon 548 0.20hp, 1ph 0.48hp, 3ph Weight with Track & Lifters Falcon 534 – 65 lbs. (29.5kg) Falcon 548 – 70 lbs. (31.75kg) Standard Features Toggle manual switch, pull handle options Manual lifter, Bias Lifter, Air Lifters, Material Alignment, Push Handle, Swivel Handle Blade Size Falcon 534 – 4 in. (10.2cm) Falcon 548 – 5 in. (12.7cm) Cutting Capacity Falcon 534 – 0.5 in. (1.27cm) Falcon 548 – 1 in. (2.54cm) Disclaimer All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
