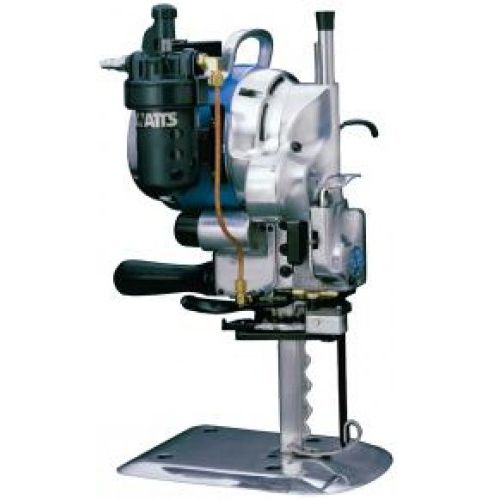

Straight-knife cutting machine Micro Fog™

electriccompressed airplastic

Eastman's exclusive Micro Fog machine ensures maximum heat reduction for cutting highly fusible materials and plastics. The Micro Fog device sends a mist of coolant / lubricant behind the knife and out through a specially slotted knife-slide to penetrate every layer and to eliminate the conditions that cause fusing. The Micro Fog straight knife requires 90-120 psi compressed air. The Micro Fog™ is available in a standard version, 629XMF, and a heavy-duty version, 627XMF. All Eastman machines are built with the highest grade materials available. Ensures maximum heat reduction to eliminate fusing of materials aided by its dual speed motor, short stroke and wave blade The Micro Fog device sends a mist of coolant / lubricant behind the knife and out through a specially slotted knife-slide to evenly cool the entire blade Requires 90-120 psi (6.2-8.3 bars) compressed air Motors 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380V, 3ph, 50Hz Standard: Single Speed Optional: Dual Speed Horsepower .65hp, 1ph .93hp, 3ph Weight 34 lbs. (15.4kg) Blades Standard: Carbon Steel Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip Belts Standard: Medium Grit Optional: Fine, Coarse, Rough options Micro Fog only available for 6 in. and 8 in. Stroke Sizes 1.125 in. (2.86cm) 1.25 in. (3.18cm) 1.5 in. (3.81cm) 1.75 in. (4.45cm)
