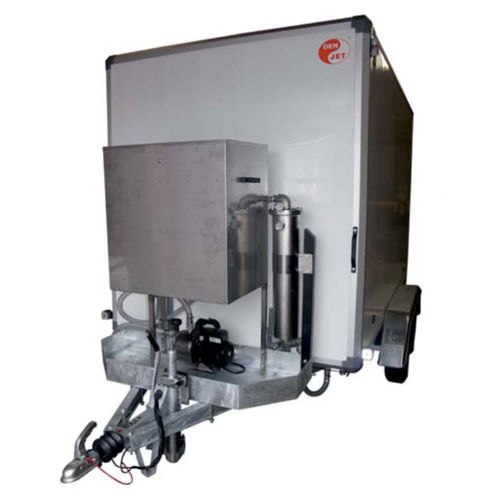

Shipyard high-pressure cleaner CDT50 Series

trailerablehot waterdiesel engine

The CD50 TRAILER range of water-blasters and water-jetting machines goes from 230 to 2000 Bar with pump flows from 11 to 80 L/min. The pump are driven by a 4 cylinder water cooled Toyota diesel engine and the frame inside the trauler is made in hot dip galvanized steel for durability and corrosion resistance and is primed and painted for a nice appearance. The frame with the machine on are easy to slide out for service. The CD50 Trailers can be configured with many different options like hot water boilers, electrical operated hose reels, remote control etc. General specifications Max pump speed - 1160 rpm Engine - Toyota Diesel 4 Cyl. Water cooled Engine power - 37.3 kW Engine rpm - 1900 rpm Tank - 90 L Max fuel consumption - 11.0 L/h Noise (1m) - 89 dBa Dimensions - 3050mm x 1700mm x 1900 mm (2000 kg)
