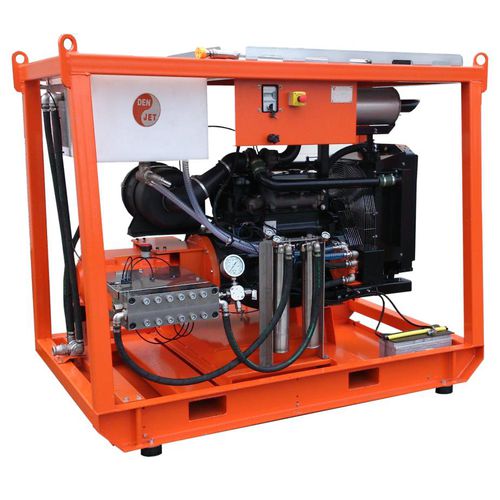

Shipyard high-pressure cleaner CD160 Series

for shipsskid-mounteddiesel engine

The CD160 range of water-blasters and water-jetting machines goes from 200 to 2500 Bar with pump flows from 25 to 300 L/min. The pump are driven by a 4 cylinder water cooled Turbo charged and intercooled SISU diesel engine and the all enclosing frame is made in hot dip galvanized steel for durability and corrosion resistance and is primed and painted for a nice appearance. The machine foot print is 2250 x 950mm of floor space. The frame are equipped with rubber feet under all four corners and the machine have forklift pockets as well as lifting eyes in all four corners. The machines have galvanized roof plates with side railings for protection and storage of forexample high pressure hoses. General specifications Max pump speed - 560 rpm Engine - 4 Cyl. Water cooled, Turbo Diesel w. Intercooler Engine power - 119.3 kW Engine rpm - 1800 rpm Tank - 140 L Max fuel consumption - 26.0 L/h Noise (1m) - 84 dBa Dimensions - 2250mm x 950mm x 1300 mm (1850 kg)
