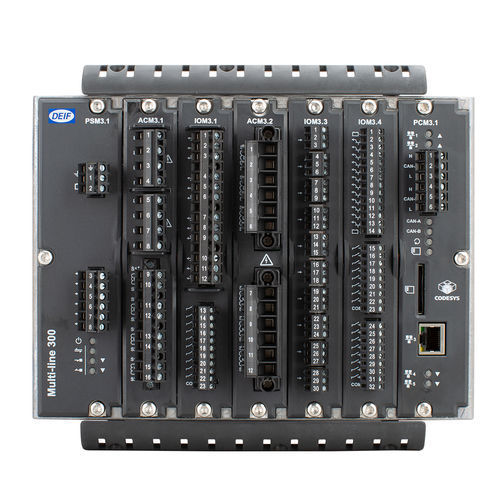

Programmable controller AMC 300

for ships

The AMC 300 is being phased out and replaced by the iE 350 PLC in DEIF's product programme. Fully production tested control system units Designed for a lifetime no less than 10 years @ 40 ºC Suitable for Offshore, Marine and near shore environments Superior robustness to vibrations, bumps and shocks Better ESD protection, Surge protection of I/O and Power supply Warranty: 2 years (not including wearable parts) with option to 3 years. Multifunction I/O modules with 24V DC Digital Inputs, Digital Outputs, Relay Outputs, Voltage / Current Analogue Inputs, Thermocouples, PT100/1000 inputs, Frequency Counter inputs, PWM outputs. Direct 3-phase 690 V voltage and 1/5A current measurement with class 0.5 Power measurement Modular I/O concept with distributed I/O nodes based on Standard EtherCAT and supporting EtherCAT cable redundancy CAN/CANopen, TCP/IP, RS-422/485 serial communication interfaces Operating system software with fail-safe update DEIF In-house maintained OS Real-time Patched Linux Discover the device via hostname (mDNS services) Web based configuration Simplified update procedures (no special tools, same for OS and firmware) Secured Certificated based access by standard protocols Customer manages all users, rights and credentials Network config on build-in 5 port switch (VLANs) Network Time protocol support as both Client and Server Fail-safe system software start up with two OS images (active and fault-back) Fault-tolerant file system Open software development with Linux, CODESYS V3 (IEC 61131-3) Regular updates to newest CODESYS V3.5 Service Packs Modbus TCP Client and Server library OPC UA Server (Open62541) library
