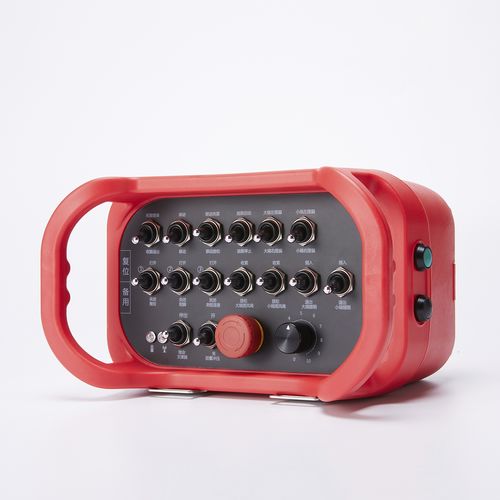

Winch remote control DCH-S2400
thrusterwindlassradio

winch remote control
winch remote control
winch remote control
winch remote control
winch remote control
winch remote control
Add to favorites
Compare this product


Characteristics

Applications
for winch, thruster, windlass, radio, for cranes, for gantry crane, for travel lift, for handling trailer, anchor, for walkways, winch
Application domain
for boats, for harbors, for shipyard, for ships, for terminals
Other characteristics
with buttons, wireless, multifunction

Description

Dimensions: 230mm×140mm×100mm Weight: 1200g-1800g (depending on configuration) Antenna: inside or outside Start Mode:press start button for 2 seconds Emergency:conforms to EN13849-1 standard. Housing:PA66 +30%GF plastics Protection Class:IP65 Panel components: max 24 DI input (toggle/knob/rotate switch, button etc,.) Two sides functions: start+another 3 buttons functions Intelligence key:DCH iKey Distance:≥150 meters(open environment) Temperature range: -25℃~+70℃ Frequency: 433-434MHz; Display:show Signal / battery status etc,. Joystick life: ≥2,000,000 times Power supply:Li-iron battery 3500mah 7.4VDC Charging time:3 hours to 100% Continuous working time: 40 hours (at room temperature) Automatic shutdown: 15 minutes or 30 minutes Add function: safety shutdown function, Vibration alarm and wired control Panel text is decided by customer. Our series receiver can have DO,AO,PWM ,Canopen,Profibus-DP,Profinet,Can, RS485,Devicenet,J1939 output. ETC,. Typical applications: cranes, truck mounted cranes, aerial work vehicles, crawler cranes, excavators, grinders, shotcrete machines, spreaders, wet sprayers, ship unloaders, agricultural tractors, track laying machines, tower cranes, Mobile crushers, pump trucks, towing pumps, drilling rigs, AGV, shield tunneling machines, sanitation vehicles, fire engines, electric construction vehicles, spreaders, chain arm saws, rock drills, agricultural equipment, Special robots, engineering vehicles, locomotives, special drilling equipment, mining equipment and other complex equipment with display screen.
