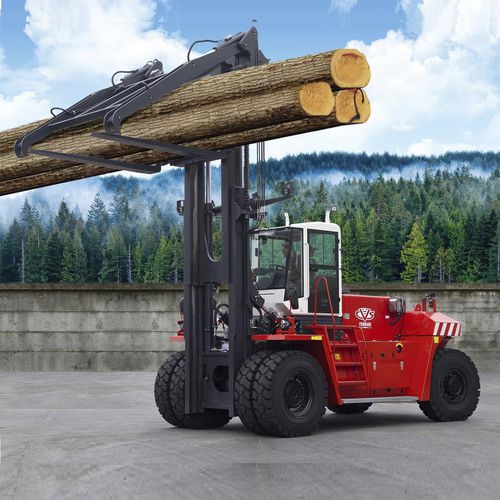

Harbor forklift FH 4x4 series

harbor forklift
harbor forklift
Add to favorites
Compare this product


Characteristics

Application domain
for harbors
Carrying capacity

16 t, 18 t, 20 t, 25 t (17.6 us ton)

Description

Heavy loads to be handled on very rough terrains or icy and snowy operation theaters? The CVS FERRARI Ail Wheel Drive Heavy Duty Fork Lifts can manage that and more. With capacities ranging from 16 to 25 Ton at 1200 mm load centre, this product line is the idéal solution for businesses that hâve to mobilize heavy goods in very critical ground conditions. Log or Pipe Clamps, Load Retainers and Hydraulic Slewing Carriages are available options that enhance the efficiency of these trucks in some of their most popular applications. Furthermore, the standard high mounted engine and the also available option of the cold weather package (-40deg), make these machines very suitable for soft and muddy yards as well as for extreme rainfall and snowfall environments. Model FH16 4×4 Attachment Type Forks (On optional Hydraulic Swivelling Carriage) Load capacity on tires kg16.000 Load centre distance (+/- out/in rach) mm1.200 Load centre to centre of front axle mm2.250 Standard lifting height on forks mm4.600 Max available lift height on forks mm7.000 Wheelbase mm4.000 Service weight unladen kg33.600 EU Stage 3a Engine make&model (Rated Power) (kW)Cummins QSB 6.7 (164) EU Stage 4 Engine make&model (Rated Power) (kW)Cummins QSB 6.7 (164) Transmission make&model ZF 3WG190 Service Brakes Wet Disc on front wheels + Dry Drum on rear wheels Tires size 14.00-24 Overall width mm3.000 Overall length (including forks) mm8.630 Overall height (mast lowered) mm4.600 Seat height mm2.550 Mast tilt, forward / backward deg5 / 10 Forks side-shift mm+480 / -480 Forks size (L x W x T) mm2440x250x100 ∗ optional

Catalogs

No catalogs are available for this product.

See all of CVS Ferrari‘s catalogs

Other CVS Ferrari products

FORK LIFT TRUCKS
