Boat indicator VAH60H

ammeterdigitalfor battery

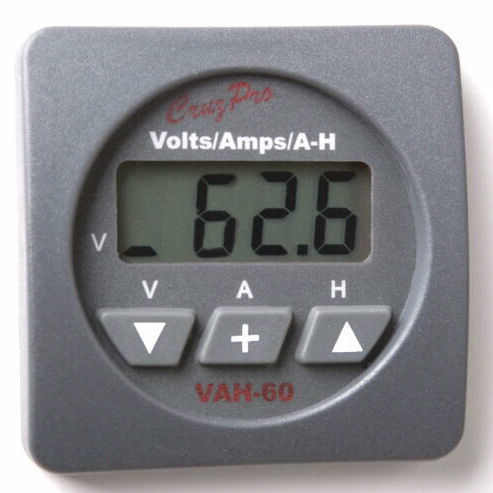

The CruzPro VAH60H is a marine digital battery monitor for 9.5–70.0 V systems. It measures and displays battery voltage, charging/discharging current, amp-hours consumed and remaining, and percentage state of charge. The unit tracks all current in and out of the battery and applies Peukert and efficiency corrections to improve remaining capacity estimates. Front-panel controls allow setup, calibration and alarm configuration; settings are stored in non-volatile memory. A calibrated 150 Amp shunt is included.

Versions

• Square VAH60H
• Round VAH60H

Certifications
CE certified.

Functionality

• Displays volts, amps, amp-hours remaining and percentage charge remaining
• NMEA 0183 serial output at 4800 BAUD (ASCII sentences for volts, amps and amp-hours)
• Front-panel calibration for voltage, current, charge efficiency, Peukert exponent and battery bank capacity
• Auto-zero function for the ammeter
• Built-in 85 dB audible alarm with configurable high/low voltage and low amp-hours remaining; alarms trigger display flashing
• Five backlight levels (including OFF), saved to non-volatile memory
• Low standby current draw for continuous installation

Specifications

• Operating voltage: 9.5 - 70.0 VDC
• Current drain: 0.018 A nominal (power consumption 0.017 A listed)
• Display: 4-digit LCD, 5 levels of backlighting
• Data: Volts, Amps, Amp-Hours, % charge remaining
• Ranges: 9.5 to 70.0 VDC; -150 to +150 Amps; 0 to 3000 Amp-Hours; 0–100% charge
• Battery size (programmable): 100 to 3000 Amp-Hours
• Data output: NMEA 0183 serial 4800 BAUD (sent as $IIXDR,V; $IIXDR,A; $IIXDR,G)
• Alarms: Built-in 85 dB audible alarm; settable high/low voltage alarms; low amp-hours remaining alarm; group ON/OFF for all alarms
• Size: 2.5" dia x 4.1" deep (61 mm x 104 mm)
• Mounting: 2-1/8" (55 mm) round hole
• Included: Calibrated 150 Amp shunt
