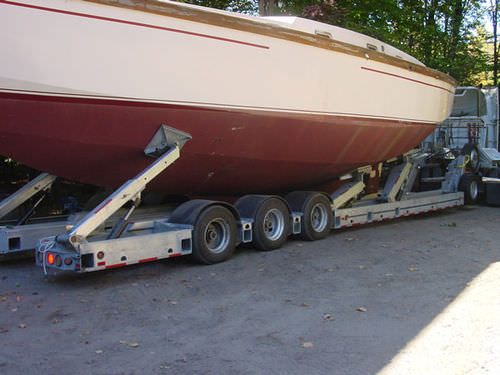

heavy haul trailer / for sailboats
OTR-30

{{requestButtons}}

Characteristics

  • Use:

    heavy haul

  • Applications:

    for sailboats

  • Payload:

    Max.: 70,000 lb (31,751.47 kg)

    Min.: 60,000 lb (27,215.54 kg)

Description

Standard Capacities and Features
Capacity (size)
o Powerboats to 50' LOA
o Sailboats to 52'LOA
Capacity (weight)
o 60,000 lbs highway
o 70,000 lbs off-road
Trailer Drnensions:
o Overall trailer length - 53'
o Usable bed length-42'4"
o Overall trailer width - 8' 6" (custom width frames also available)
o Clear width between frame rails - 32"
o Frame size -12" x 12" x .500" HSS steel tube
o Keel ride height -16"
HD fifth-wheel gooseneck with 2 lockable aluminum storage boxes
Complete hot dip galvanized frame including hubs, brake drums, and rims
Wireless remote control for all functions including main lift, hydraulic arms, and
brakes
Manual back-up control panel on trailer for all functions (secured in lockable cabinet)
Air powered frame lift (lift range is from 13" - 21" over crossbeams)
Hydraulic-powered front landing wheels
Six hydraulic arms featuring manual telescopic extension / rear arms rotate fore and
aft
Pilot operated safety lock valves on hydraulic arms and front landing wheels
Eight 6"x 6" oak crossbeams
Six Aluminum light weight drop beams
Air braking system with ABS (12-1/2" x 7-1/4" brakes) with remote control operation
Three - 22,500 lb Dexter axles with Firestone air-ride
Pressure-fed oil-filled hubs
