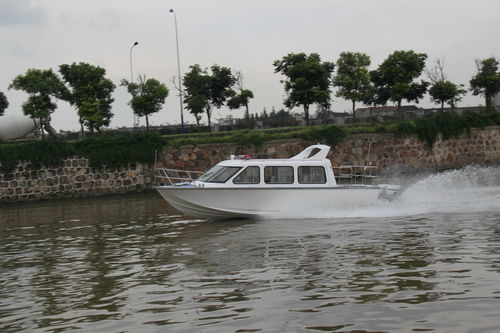

Patrol boat YB-950

outboardfiberglass

Specification: - L.O.A.: 9.5m - Beam: 3.2m - Depth: 1.405m - Draft: 0.565m - Passenger capacity: 12 (including 1 crew) - Sailing area: Coastal, river Overview: This vessel is a powerboat specially designed for official law enforcement and passenger transportation on inland rivers, reservoirs, lakes, and coastal waters. The entire cabin is spacious and bright, with excellent visibility. The hull design is reasonable, and the exterior and interior are beautiful and smooth. It has good operational economy and is equipped with a powerful, low-emission HONDA 4-stroke outboard engine, making it very suitable for official law enforcement and passenger transportation needs. Main Vessel Parameters: - Total length: 9.50m - Beam: 3.20m - Depth: 1.46m - Design draft: 0.56m - Main engine: 150HP HONDA outboard engine × 2 units - Full load capacity: 12 people - Applicable navigation area: Inland river or sheltered coastal waters - Speed: 45 km/h Structural Strength: The entire vessel is produced using Japanese-designed drawings, with multiple decomposed molds. During construction, high-quality marine fiberglass materials are used as the main structural material. The outer protective coating of the hull is made with Finnish 'NESTE' brand gelcoat. The overall and local structural strength meets the relevant requirements of the national classification society. Power Configuration: - HONDA 150HP 4-stroke outboard engine × 2 units (hydraulic steering system) HONDA 150HP Technical Specifications: - Engine Type: 4-stroke, four cylinders, four valves, VETC variable valve timing - Displacement: 2396 cc - Full throttle RPM range: 5000-6000 rpm - Rated Power: 150 HP @ 5700 rpm - Compression Ratio: 9.8:1 - Fuel Supply: Electronic injection - Cooling System: Water-cooled - Ignition System: Computer program control - Starting System: Electric start - Overall Width: 485 mm - Transom Height: 635 mm - Engine Weight: 238 kg - Maximum Fuel Consumption: Less than 35 L/h - Generator Output: 48 A Note: Currently, among all brands and models of outboard engines, only HONDA uses the advanced VETC variable valve timing technology, which greatly increases horsepower and reduces fuel consumption. HONDA 150HP 4-stroke Outboard Engine Dual Engine Configuration Details: - Main Engine: - Honda BF150 front control electric lift 25-inch shaft right rotation outboard engine × 1 - Honda BF150 front control electric lift 25-inch shaft left rotation outboard engine × 1 - Main Engine Accessories: - Dual engine single station start switch control panel and cable assembly × 1 set - Honda lift gauge (with night light) × 2 - Honda tachometer (with night light) × 2 - Honda dedicated stainless steel right-turn propeller × 1 - Honda dedicated stainless steel left-turn propeller × 1 - Random maintenance tools × 2 sets - Fuel-water separator × 2 - Dual Engine Linkage Hydraulic Steering System: - Steering wheel × 1 - Steering machine × 1 - Hydraulic cylinder × 1 - Hydraulic oil pipe × 2 - Dual engine linkage connection device × 1 set - Dual Engine Single Station Mechanical Control System: - Double-handle vertical control box × 1 - USA TELEFLEX MORSE durable throttle cable × 2 - USA TELEFLEX MORSE durable shift cable × 2 Technical Specifications / Features: - Total length: 9.50m - Beam: 3.20m - Depth: 1.46m - Design draft: 0.56m - Main engine: 150HP HONDA outboard engine × 2 units - Full load capacity: 12 people - Applicable navigation area: Inland river or sheltered coastal waters - Speed: 45 km/h - Hull material: High-quality marine fiberglass - Coating: Finnish 'NESTE' brand gelcoat - Engine technical features: VETC variable valve timing, electronic injection, water-cooled, computer program control, electric start
