Ship separator PTU2 27/27 hydraulic

ship separator
ship separator
Add to favorites
Compare this product


Application domain
for ships
Treated substance

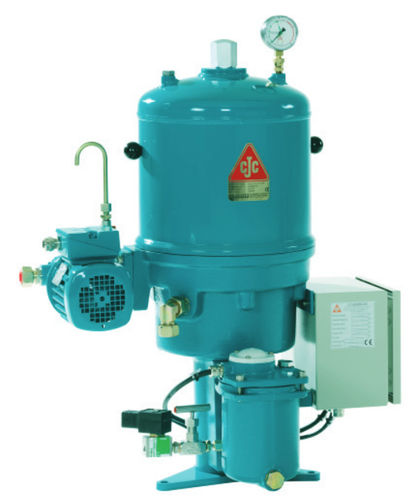

PTU2 27/27 Hydraulic is an off-line oil filtration system, combining continuous water separation with oil filtration and is used for hydraulic oils, turbine lubrication oils and gear oils, removing water, particles, and oil degradation products (oxidation, resin/sludge, varnish). The PTU2 27/27 Filter Separator is available with either automatic or manual water discharge. Filter Separators with automatic water discharge have a control box for monitoring as standard. Pressure drops can be monitored on a pressure gauge on top of the filter. They are also equipped with electric pressure guards. The PTU2 27/27 uses one CJC® Filter Insert, plus a coalescer element. It is available in a range of design configurations including preheaters, drip pans, tanks, and control boxes. The PTU2 27/27 Hydraulic is ideal for: Hydraulic oils (e.g., power packs) Boiler feed pumps Steam turbine lubrication oils Gearboxes with potential water ingress (e.g., wet crushers or marine thrusters) Lubrication oil for labelling machines and similar industrial and marine application where water ingress is a recurrent problem.
