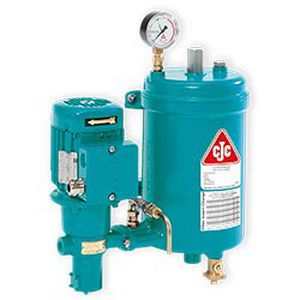

Oil filter HDU 15/25 PV
for shipshydraulic system

oil filter
oil filter
Add to favorites
Compare this product


Characteristics

Type
oil
Application domain
for ships
Applications
hydraulic system

Description

HDU 15/25 PV is a fine filter for offline oil filtration in hydraulic power transmission, lubrication, cooling, and small quench-oil systems. Particularly useful for filtering high-viscosity lubricants in gear boxes on wind turbine transmissions. The filter is a 3-micron absolute filter with a high dirt-holding capacity and a cellulose-based filter insert that removes particles, retains oil degradation products (oxidation, resin/sludge, varnish), and absorbs dissolved/emulsified and free water from oil. Special inserts, which do not absorb water, are available on request. Special Feature Retrofit of HDU 15/25 turning it into a PTU 15/25 As the HDU 15/25 is designed as a modular system, it is possible to turn a HDU 15/25 into a PTU 15/25 by retrofitting the separate coalescer housing and changing the insert type to BLA 15/25. This process changes the water separation method from absorption to coalescing, which is suitable for larger amounts of water and resulting in a reduction of maintenance costs! HDU 15/25 PV is available in one size only with one filter insert. CJC® oil maintenance systems are available in a range of design configurations including pre-heaters, drip pans, tank, control boxes, coalescers. The HDU 15/25 PV Filter is ideal for: small hydraulic power packs gear boxes, in particular wind turbine transmissions tap changers injection moulding machines and similar industrial and marine applications etc.

Catalogs

No catalogs are available for this product.

See all of C.C. Jensen‘s catalogs
