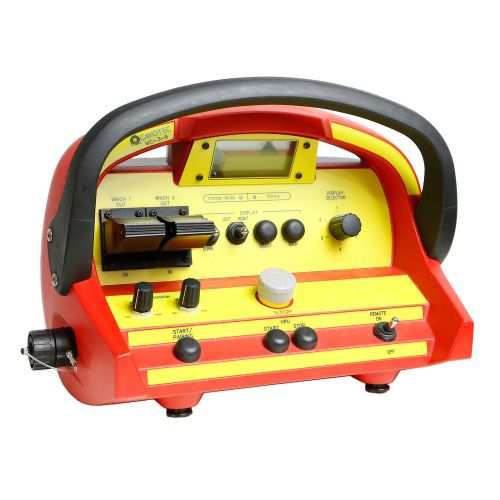

Terminal remote control MC 3-6

for harborwith buttons

MC 3-6 Dimensions: 330 x 220 x 200 mm Weight: 2.0 Kg IP: IP65 standard, IP66 optional Temperature: -25°C to +60°C, -13°F to +140°F Operating distance: approx. 200 m line of sight Operating time: typical 20 hours (depending on configuration & temperature) Battery: 7.2 V 1700 mAh Li-Ion Frequency: 418 MHz - 870 MHz and 2.4 GHz Benefits Digital and analogue functions. Suitable for the harshest of environments. High mechanical and chemical resistance due to moulded housing design. Ergonomically designed for all types of long distance operations. Operator terminal layouts are configured according to application and customer requirements. Can be fitted with analogue or digital joysticks, push-buttons toggle switches and rotary switches. Safety features with start-stop push-button, On/Off switch. According to PLd and SIL3 Optional: LEDs graphical displays and cable back-up.
