Limousine yacht tender JT 34 LIMO

hydro-jettwin-enginewith enclosed cockpit

Product overview

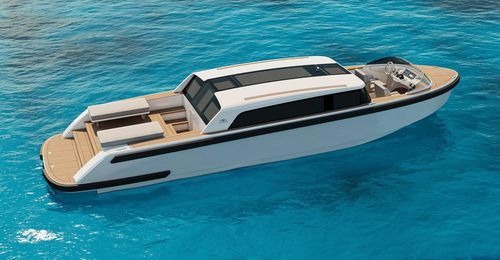

Jet Tender 34 LIMO is a limousine-style jet tender designed for superyacht transfer and limousine duties. It combines professional Castoldi waterjet propulsion, an enclosed climate-controlled cabin and dedicated passenger amenities for efficient, protected transfers in varied sea conditions.

Main features

• Professional Castoldi waterjet drives with stainless steel and titanium components
• Perimeter soft-foam fender
• Enclosed cabin with air conditioning and heating
• Complete pantry with built-in refrigeration
• Private head with marine toilet and washbasin
• 400 l structural fuel tank
• Gull-wing hinged doors for cabin access
• Castoldi ACES electronic control system with joystick for docking
• Widescreen multifunction display with digital switching for onboard services, audio system and VHF
• Retractable bimini top for pilot overhead protection

Technical characteristics
Length o.a.: 10.50 m
Beam max.: 2.80 m
Height max.: 2.10 m
Passengers (C.E. Directive): No. 12+2
Design category (C.E. Directive): C
Engines: No. 2 x 250 mHP Yanmar diesel
Propulsion systems: No. 2 x Castoldi Turbodrive 284 H.C.T. waterjet units with hydraulic clutch, movable grid and Clear-Duct unclogging system
Boat weight (dry): 5,800 kg (includes oil and water in engine and oil in the waterjet)
Fuel capacity: 400 l
Top speed: 35 knots (light loaded)

Construction

• Hull: Single-skin structure, hand-laid Kevlar and vinylester resin
• Deck, console: Sandwich structure, hand-laid glass and isoftalic polyester resin with nidaplast core
• Stringer system: Sandwich structure, hand-laid Kevlar and vinylester resin with polyurethane closed-cell foam core

Specifications

• Overall length: 10.50 m
• Maximum beam: 2.80 m
• Maximum height: 2.10 m
• Passenger capacity (C.E.): 12 + 2
• Design category (C.E.): C
• Powerplant: 2 × 250 mHP Yanmar diesel engines
• Propulsion: 2 × Castoldi Turbodrive 284 H.C.T. waterjets with hydraulic clutch, movable grid and Clear-Duct system
• Empty (dry) weight: 5,800 kg (includes oil and water in engine and oil in the waterjet)
• Fuel capacity: 400 litres (structural tank)
• Top speed (light loaded): 35 knots
