Automated defibrillator AED

emergency

Overview

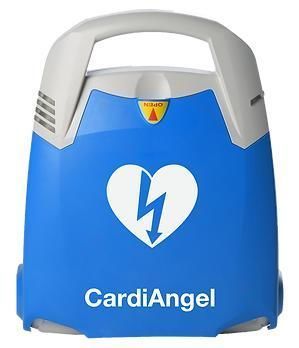

The CardiAngel Public Automated External Defibrillator (AED) is designed to enable rapid defibrillation by lay rescuers and first responders in public and clinical environments. The device delivers an electrical shock to restore an effective heart rhythm and is intended for use together with high‑quality chest compressions.

Key benefits

• Every minute matters: early defibrillation with CPR significantly increases survival probability.
• Immediate readiness: opening the cover powers the AED and begins guided operation.
• Fast deployment: pre‑connected electrodes and automatic analysis reduce time to first shock.
• Patient adaptability: supports adult and paediatric electrodes; automatic electrode recognition and energy adjustment; storage for pediatric electrodes on the unit.

CPR support and feedback
The CardiAngel provides real‑time guidance to improve CPR quality and chest compression effectiveness.

• Guides correct hand placement.
• Provides a metronome for rhythm pacing.
• Delivers real‑time compression rate feedback without additional sensors (FreeCPR®).

Electrodes & maintenance

• Electrodes are pre‑connected, clearly identifiable and immediately accessible.
• RFID‑tagged electrodes enable expiry checks.
• Intervention data are stored locally; data extraction via SD card for clinical review.
• Automatic periodic self‑tests with visible status indicators ensure operational readiness.

Operation modes & usability

• Selectable automatic or semi‑automatic operation modes.
• Systematic pre‑charging allows immediate shock delivery when required.
• Multilingual packages available (trilingual options and repeat function when a single language is selected).

Environmental & installation

• IP55 rating for dust and water resistance — suitable for indoor and outdoor installations in demanding environments.
• Optional IoT monitoring via built‑in GSM module for remote status supervision across sites (optional feature).

Quality & warranty

• Manufactured in France by Schiller, an established medical device manufacturer.
• 10‑year warranty available with adherence to regular maintenance and monitored service schedules.

Important clinical notes
Start CPR immediately if the patient is unconscious and not breathing normally. High‑quality chest compressions combined with early defibrillation significantly increase survival rates. The CardiAngel AED is designed for rapid, guided use to support prompt intervention.

Technical specifications

• Product name: CardiAngel® AED
• Operation: Automatic or Semi‑Automatic
• Electrodes: Pre‑connected; adult and paediatric electrode recognition; RFID‑tagged
• CPR support: Real‑time feedback, hand placement guidance, metronome, FreeCPR®
• Data management: Intervention data stored locally; retrieval via SD card
• Connectivity: Optional IoT/GSM monitoring module
• Environmental rating: IP55 (dust & water resistant)
• Startup: Immediate power‑up when cover is lifted; systematic pre‑charging
• Languages: Multiple language packages; trilingual/repeat function available
• Self‑test: Automatic periodic self‑tests with status indication
• Manufacturer: Schiller (manufactured in France)
• Warranty: 10‑year warranty with regular maintenance
