Cruising motor yacht 64

sportflybridgeinboard

Overview

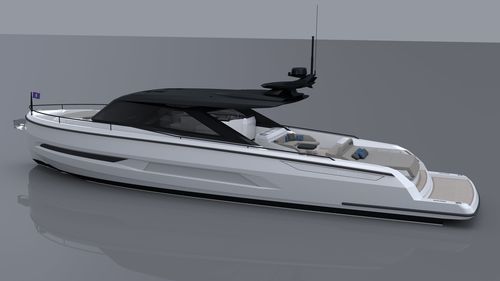

The new 20.50-metre Santasevera 64 by Guida Design is a fiberglass motorboat in series build in Italy. It is designed with pod (IPS) propulsion and offered in Sport and Sportfly configurations. Cruise speed at half load is 27 kn, maximum speed 32 kn.

Availability
Coming soon

Versions

• Sport
• Sportfly

Main data

• Type of boat: Motorboat
• Hull and deck construction material: Fiberglass
• Overall length: 20.50 m
• Hull length: 19.80 m
• Floating length @ half load: 17.80 m
• Maximum beam: 5.70 m
• Maximum draft @ half load: 1.60 m
• Displacement @ half load: 38 t
• Motors: 2 x Volvo Penta D13-IPS1200 (2x662 kW)
• Propulsion: IPS 1200 (optional IPS 1350)
• Cruise speed @ half load: 27 kn
• Max speed @ half load: 32 kn
• Generator: Onan MDKDP - 17 kW - 50Hz
• Bow thruster: Side Power SE170/250T
• Air conditioning: 50,000 Btu/h

Tank capacity

• Fuel: 3,600 l
• Fresh water: 1,000 l
• Gray water: 400 l
• Black water: 300 l

Project / Naval architecture
Project / Naval Architecture / Design: GUIDA DESIGN
Project code: 2026A

Technical specifications

• Overall length: 20.50 m
• Hull length: 19.80 m
• Floating length @ half load: 17.80 m
• Maximum beam: 5.70 m
• Maximum draft @ half load: 1.60 m
• Displacement @ half load: 38 t
• Hull and deck material: Fiberglass
• Motors: 2 x Volvo Penta D13-IPS1200 (2x662 kW)
• Propulsion: IPS 1200 (optional IPS 1350)
• Cruise speed @ half load: 27 kn
• Max speed @ half load: 32 kn
• Generator: Onan MDKDP 17 kW - 50Hz
• Bow thruster: Side Power SE170/250T
• Air conditioning capacity: 50,000 Btu/h
• Fuel capacity: 3,600 l
• Fresh water capacity: 1,000 l
• Gray water: 400 l
• Black water: 300 l
• Design: Guida Design
