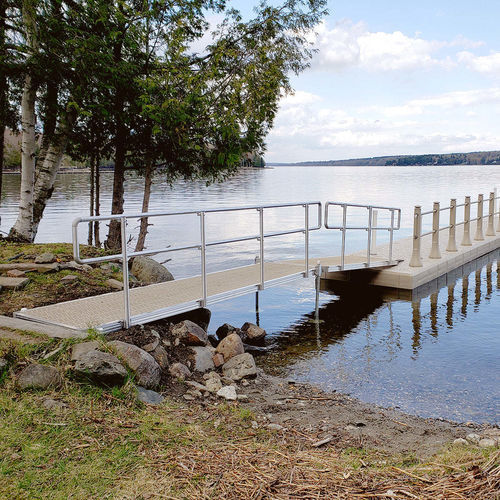

Marina gangway C05-0000 series

for docksmodularmanual

Overview
Modular dock gangway C05 designed for light-duty residential use on docks and small marinas. Lightweight aluminium extrusion frame ships unassembled to reduce transport costs and is bolted and screwed together on site for straightforward installation. Profiles and stainless-steel hardware provide corrosion resistance in marine environments.

Key features

• Extrusion frame profile: 3.49 cm x 8.57 cm (1.375’’ x 3.375’’)
• Designed for light-duty residential dock applications
• Shipped unassembled to optimize shipping volume and cost
• On-site assembly with bolts and screws; no specialized welding required
• Maximum single unit length: 3.60 m (12')

Available sizes

• 3ft x 4ft
• 3ft x 8ft
• 3ft x 12ft
• 4ft x 4ft
• 4ft x 8ft
• 4ft x 12ft

FAQ (product-specific)

• Are these gangways longer than 12 feet? Modular gangways are limited to a maximum single length of 12 feet for practical installation and handling. Longer runs can be achieved by connecting two units with a junction kit.
• What is the maximum recommended slope angle? Recommend not exceeding 30°; add a modular handrail for improved safety and stability on steeper slopes.
• Can alternative decking materials be used? Yes, but plastic decking contributes to structural performance; if specifying a different decking material such as wood, ensure it is mechanically fastened to the aluminium frame with through-screws to maintain structural integrity.

Technical specifications

• Material: Aluminium T6 frame; stainless steel 316 hardware
• Corners: Cast aluminium
• Frame profile size: 3.49 cm x 8.57 cm (1.375’’ x 3.375’’)
• Maximum single unit length: 3.60 m (12')
• Assembly: Supplied unassembled; bolted and screwed on site
• Intended use: Light-duty residential dock gangway
• Example SKUs by size: C05-000084 (3ft x 4ft), C05-000086 (3ft x 8ft), C05-000082 (3ft x 12ft), C05-000090 (4ft x 4ft), C05-000092 (4ft x 8ft), C05-000088 (4ft x 12ft)
