Boat lift V-Roll

floatingdock-mountedpneumatic

Product overview

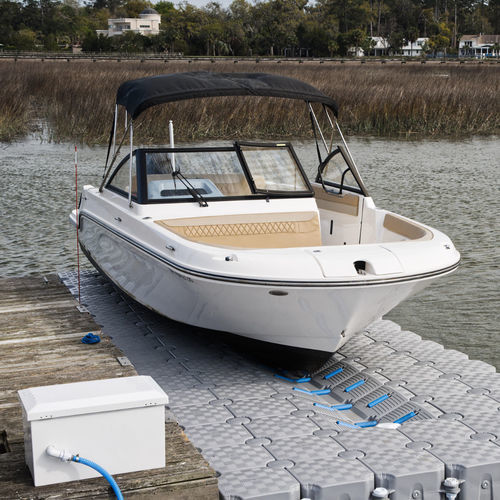

Candock takes another step forward with its drive-on dock solution: the V-Roll System. A smart combination of a V-shaped cube and an entry module designed to simplify docking. Thanks to a fully modular design, the system can be configured to create the optimal boat lift tailored to your watercraft.

Key features
Each V-Roll cube is equipped with heavy-duty rollers that allow boats or PWCs to glide smoothly in and out of the water with minimal effort. The V-shaped profile guides and centers the vessel for stable, repeatable positioning.

Components

• Regular G2 cubes (standard Candock cubes)
• Connecting pin
• V-Cubes (V-shaped cubes with rollers)
• Entry Cube (entry module with roller, MDPE)
• AirLift 6500 (optional for boats heavier than 3,000 lb)

CANDOCK V-CUBE
V-shaped cube made from ultra-durable HDPE. Designed to guide boats into position; equipped with three heavy-duty rollers for smooth entry and exit. Easy to install and fully modular for system expansion.

CANDOCK ENTRY CUBE
Entry cube made from MDPE (slightly softer material) to protect hull finishes. Entry roller centers and guides the watercraft onto the V-Roll system; particularly suited for deep V hulls to ensure controlled approach and alignment.

AirLift 6500 (optional)
AirLift 6500 complements the V-Roll System for heavier boats. Core elements: a wide, ultra-durable PVC airbag with protective cover, a fiberglass control box, and a high-capacity air blower. With handheld control, air inflates the bag to raise the boat. Designed to support boats up to 6,500 lb (approx. 28 ft). Installation beneath the dock; recommended for boats over 3,000 lb.

Usage & compatibility notes
The V-Roll System is aimed at lighter watercraft; for boats above 3,000 lb pair with AirLift 6500. For best performance and longevity, install in sheltered or low-wave environments. Some hull types (e.g., stepped hulls, many wakeboard boats, or hulls with protruding components) may interfere with the rollers; in such cases the AirLift may not be recommended.

Technical specifications

• Modular design: expand or reconfigure using standard Candock cubes and accessories
• Material V-Cube: ultra-durable HDPE
• Entry Cube material: MDPE (softer, hull-protective)
• Rollers: heavy-duty rollers on each V-Cube (three rollers per V-Cube) for smooth glide-in/-out
• Guidance: V-shaped profile centers and guides the vessel into position
• AirLift 6500 capacity (when used): supports up to 6,500 lb (approx. 28 ft)
• Recommendation: use AirLift for boats over 3,000 lb
• Minimum recommended water depth for AirLift: approx. 3 ft (do not install below this depth)
• Installation environment: sheltered / low-wave recommended to reduce wear and improve stability
• Not recommended with certain hull geometries (stepped hulls, many wakeboard boats) due to interference risk
