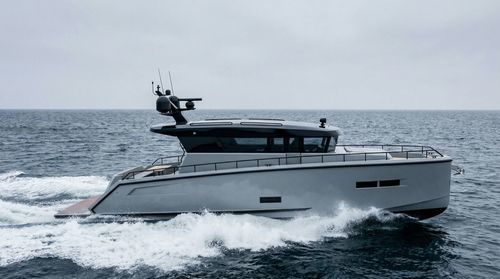

Inboard express cruiser BY34

twin-enginehard-topcruising

Overview
The BRIZO YACHTS BY34 is an 11.6 m walkaround yacht engineered for versatile offshore cruising. Its aluminium hull and compact dimensions provide a balance between seakeeping, range and practical onboard ergonomics for owners seeking flexible short- or long-range use.

Design and living spaces
A prominent aft glass door links the saloon and cockpit, creating an adaptable indoor-outdoor living area. The walkaround deck layout allows safe circulation around the vessel while the cockpit and saloon layout offers protected or open configurations depending on conditions.

Accommodation and customization
Below deck the BY34 provides two independent cabins: a forward owner cabin and a mid cabin, each with a private dayhead and shower. The layout supports comfortable extended cruising for families or guests and is designed for practical storage and service access.

Customization
BRIZO YACHTS offers multiple choices of interior materials, layout options, technical packages and equipment fit-outs so owners can specify arrangements, systems and finishes to their operational needs.

Technical data
Hull material, principal dimensions and tank capacities are specified to support planning and comparison for buyers and shipyards.

Engine and performance
Inboard options: 2 x Volvo Penta D4 or D6, or Mercury TDI 270. Outboard installations available (t.b.a.). Power range: 520–800 hp. Propulsion: inboard or outboard. Fuel type: diesel. Cruising speed: approx. 25 to over 30 kn. Waterjet propulsion available on request.

Accommodations
Cabins: 2
Berths: 4 + 2
Head: 1
Galley: 1

Technical specifications

• Hull Material: Marine grade aluminium
• LOA (Length Overall): 11.6 m (38')
• Beam: 3.55 m (11.6')
• Draft / Draught: 0.7 m (27.5')
• Weight: 8,500 kg
• Fuel Capacity / Tank: 850 l (224.5 gal)
• Water Capacity: 120 l (31.7 gal)
• Waste water capacity: 88 l (23 gal)
• Clearance / Air Draft: t.b.a.
• Engine(s) Inboard: 2 x Volvo Penta D4 or D6, or Mercury TDI 270
• Engines Outboard: t.b.a.
• Engine power: From 520 hp to 800 hp
• Propulsion: Inboard or outboard
• Fuel type: Diesel
• Cruising Speed: 25 to +30 kn
• Waterjet: Waterjet propulsion upon request
• Cabins: 2
• Berths: 4 + 2
• Head: 1
• Galley: 1
