Inboard express cruiser BY30 FLY

outboardgasolinediesel

Overview

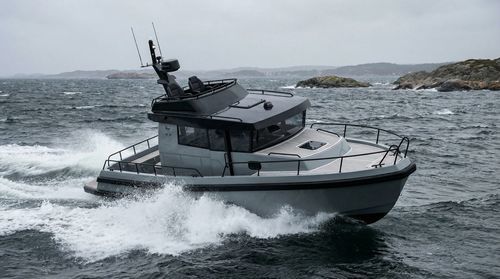

The BY30 FLY Classic from BRIZO YACHTS is a compact walkaround cabin yacht engineered for offshore capability and adaptable use. It combines a marine-grade aluminium hull with configurable interior layouts to meet a range of cruising profiles, from weekend family trips to extended coastal passages.

Accommodation and layout
Interior arrangements are designed for efficient use of space. The forward cabin can be specified with a V-berth or a full double bed and includes a private dayhead with integrated shower. A mid cabin adds berthing capacity and flexibility for guest accommodation or crew.

Wheelhouse, deck access and practicality
The raised wheelhouse and saloon provide protection and clear sightlines, with dual side doors to port and starboard for safe, practical movement on deck and simplified boarding and docking operations.

Customization and build philosophy
Built to a customizable platform, owners may select materials, finishes, equipment and layout variations to suit operational requirements and personal preferences. The construction approach emphasizes durability, serviceability and adaptability for different propulsion and outfitting options.

Technical data
Hull Material: Marine grade aluminium
LOA (Length Overall): 9.6 m (31.5')
Beam: 3.2 m (10.5')
Draft / Draught: 0.6 m (0.21')
Weight: 4,500 – 6,000 kg
Fuel Capacity: 500 l (132 gal)
Water Capacity: 88 l (23 gal)
Waste Water Capacity: 60 l (15 gal)
Clearance / Air Draft: t.b.a.

Engine and performance
Inboard options: 2 x Volvo Penta D4-260 or Mercury TDI 270
Outboard options: 2 x Mercury Verado V8-300 or V10-400
Installed power range: 520–800 hp
Propulsion: Inboard or outboard (waterjet available on request)
Fuel type: Gasoline or diesel
Estimated cruising speed: 25 to 30+ knots

Accommodations
Cabins: 2
Berths: 4 + 2
Head: 1
Galley: 1

Technical specifications

• Hull Material: Marine grade aluminium
• Length Overall (LOA): 9.6 m (31.5')
• Beam: 3.2 m (10.5')
• Draft / Draught: 0.6 m (0.21')
• Displacement / Weight: 4,500 – 6,000 kg
• Fuel capacity: 500 l (132 gal)
• Water capacity: 88 l (23 gal)
• Waste water capacity: 60 l (15 gal)
• Cabins: 2; Berths: 4 + 2; Head: 1; Galley: 1
• Inboard engine options: 2 x Volvo Penta D4-260 or Mercury TDI 270
• Outboard engine options: 2 x Mercury Verado V8-300 or V10-400
• Engine power range: 520–800 hp
• Propulsion: Inboard or outboard (waterjet available on request)
• Estimated cruising speed: 25 to 30+ knots
