Propulsion engine Smart 1.3

outboardelectricfor boat

Overview

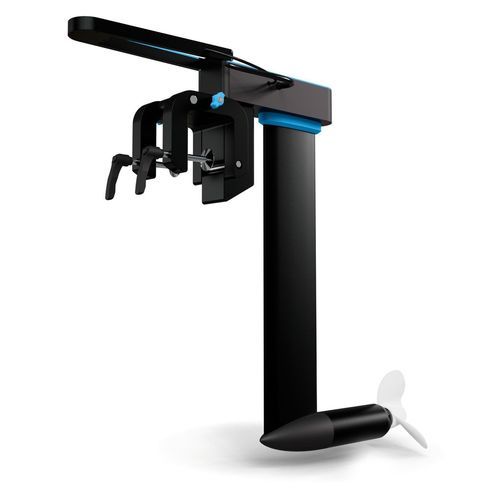

Boatee Smart 1.3 is a 1.3 kW electric outboard motor designed for quiet, lightweight and sustainable propulsion for tenders and small boats. It provides a compact direct-drive brushless alternative to small petrol outboards with low maintenance and simple operation.

Key features

• Power: up to 1,300 W with 36V or 48V battery; 900 W with 24V battery.
• Lightweight: motor weight less than 6 kg.
• Range & performance: maximum speed ~5 knots; cruise speed 3 knots; range at 3 knots up to ~6 hours (≈18 nm). Range at full speed ~1.5 hours (≈8.2 nm) when tested on a 3 m inflatable tender with 1 passenger and a 36V 50Ah battery.
• Battery compatibility: compatible with external lithium batteries rated between 24V and 48V able to deliver ≥30 A continuous discharge current.
• Battery options: offered Boatee battery packs (LiFePO4) in multiple capacities to suit the motor.
• Control & connectivity: integrated touchscreen and smartphone control via Bluetooth Low Energy for monitoring battery, adjusting speed and direction.
• Safety: emergency shutoff, digital MOB protection and advanced battery safety system.
• Maintenance-free, near-silent brushless direct-drive motor.

Design & Materials
Direct-drive brushless motor unit packaged in anodized aluminium and fiber-reinforced plastic body. Propeller options in aluminium or hard plastic with three blades.

Battery notes
The motor is compatible with external lithium batteries (LiFePO4 cells). Range figures quoted are measured using a 36V 50Ah LiFePO4 battery. Boatee offers three battery variants optimized for the motor (different nominal voltages and capacities).

Technical details (table)
Weight: less than 6 Kg
Materials: Anodized Aluminium + Fiber-reinforced plastic
Motor unit: Direct-drive Brushless
Maximum Power: 1300 W (with 36V and 48V battery) / 900 W (with 24V battery)

Package & pricing info
Launch price shown for the motor when packaged with a 36V 50Ah LiTime battery. Shipping time indicated on site is 6–8 weeks.

Technical specifications

• Model: Boatee Smart 1.3
• Motor type: Direct-drive brushless
• Maximum power: 1300 W (36V/48V), 900 W (24V)
• Equivalent output: ~+4 hp equivalent (1,178 W shown in marketing materials)
• Motor weight: < 6 kg
• Propeller: 3 blades; material aluminium or hard plastic
• Battery compatibility: 24V / 36V / 48V Li-ion (LiFePO4 recommended); battery must deliver ≥30 A continuous
• Boatee battery options (LiFePO4): nominal voltages 24V, 36V, 48V with capacities 720 Wh, 1080 Wh, 1440 Wh; weights ~7.5 kg / 10.5 kg / 12.5 kg; IP67 plastic case
• Battery size: 371 mm x 269 mm x 186 mm
• Range (3 knots, with 36V 50Ah): ~6 hours / ~18 nm
• Range (full speed): ~1.5 hours / ~8.2 nm
• Max speed (test): ~5 knots; cruise speed ~3 knots
• Connectivity: Bluetooth Low Energy; touchscreen control
• Safety features: emergency shutoff, remote lockout, digital MOB protection, advanced battery safety system
• Environmental focus: zero local emissions; low noise
