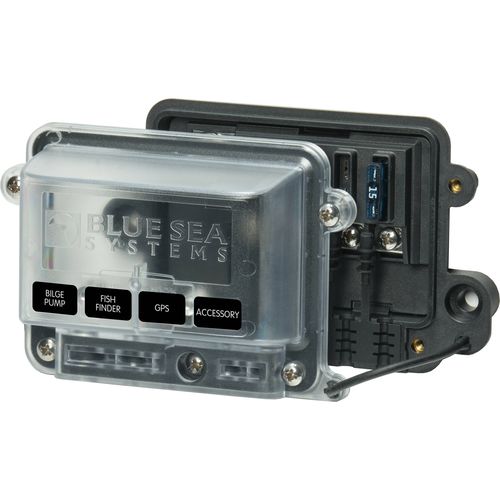

Fuse box 5056

fuse box
fuse box
Add to favorites
Compare this product


Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools Accepts a wide range of wire sizes Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required Accepts ATO and ATC fast-acting blade fuses Accepts ATO/ATC-Style Low Profile Circuit Breakers Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire 5056100 meets ABYC/USCG insulation requirements Tin-plated copper busses and fuse clips Includes four write-on circuit labels Small format standard and custom labels available Spare fuse and fastener storage in cover Fuses and circuit breakers sold separately Specifications Amperage - 80A per block 25A per circuit Maximum Voltage - 32V DC Bus Material - Tin-Plated Copper C11000 Mounting Holes - Clearance for 1/4" (6mm) screws Screw Terminal Type - #8-32 Screws with captive star lock washer Wire Size - (1) 8 AWG to 4 AWG - Input (4) 16 AWG to 10 AWG - Load
