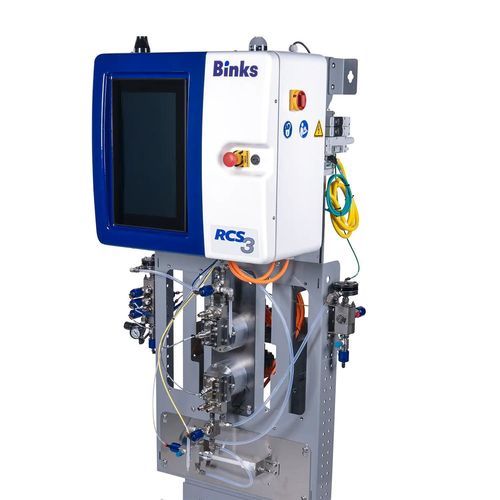

Resin metering - mixing unit IntelliFlow RCS3

paintchemical productwith gear pump

Product Overview
Binks IntelliFlow RCS3 is an electronically controlled, gear-pump driven mixing and metering system for 1K, 2K and 3K applications. Designed for high-speed production and accurate proportioning, it provides near-instant trigger response, flushable color and catalyst pumps, and seamless integration with manual or automated applicators. 15-inch touchscreen and cloud connectivity enable remote monitoring and diagnostics.

Key Features

• Accurate, consistent proportioning: multiple DLC-coated gear pump sizes for A and B components to cover 3–2000 cc/min per channel and maintain ±1% ratio tolerance.
• Instantaneous response time: 50 ms ratio response for precise material delivery and reduced waste at high production speeds.
• Flushable color & catalyst pumps: rapid color changes and minimal material waste; resin and hardener pumps flush quickly to maintain purity between formulations.
• Modular color changer with air/solvent purge: graphical interface for programming flush volumes, times and sequences; compatible with air/solvent chop systems for thorough cleaning.
• System flexibility: supports rotary atomizers, bells, disks, electrostatic and non-electrostatic guns; expandable to 8 channels and suitable for manual or automated processes.
• Operator interface and connectivity: 15-inch touchscreen, intuitive app-like UI and built-in cloud and industrial fieldbus connectivity for remote operation and diagnostics.

Benefits

• Consistent quality: precise mixing minimizes defects and ensures uniform finishes.
• Reduced waste: fast response and accurate dosing reduce material consumption and disposal costs.
• Increased productivity: streamlined operation and quick changeovers maximize throughput.
• Improved process control: user-defined zones and optional pyrometer feedback support real-time adjustments for efficient curing.
• Remote monitoring and diagnostics: cloud connectivity enables performance monitoring and troubleshooting off-site.
• Scalable investment: modular architecture supports upgrades and additional channels as production needs evolve.

Build Options
Standard 2K Packages

• Support for up to 12 colors and 4 catalysts.
• Up to 250 recipes/jobs storable on the system.
• Flushable gear pumps on both color and catalyst sides.
• A side pump sizes: 3 cc/rev (30–600 cc/min) and 6 cc/rev (60–1200 cc/min).
• B side pump sizes: 3 cc/rev (30–600 cc/min), 1.2 cc/rev (12–240 cc/min) and 0.3 cc/rev (3–60 cc/min).
• Cloud remote operation and monitoring; built-in Ethernet I/P fieldbus connectivity.

Build Your Own System

• 1K, 2K and 3K capabilities (3K with positive displacement pump options).
• Up to 100 color/catalyst/reducer options and up to 250 recipes.
• Selectable pump sizes: 0.3, 1.2, 3, 6 and 10 cc/rev supporting 3–2000 cc/min per fluid channel.
• 300 cc/min and 600 cc/min positive displacement pumps available on C side.
• Cloud remote operation and standard industrial fieldbus support for automation integration.

Legacy RCS2 vs. IntelliFlow RCS3
Feature | RCS2 | RCS3
Flushing | Flushable only on color side | Flushable on both color and catalyst sides
Calibration | Calibration at applicator | Calibration on pump or at applicator
Compatibility | 1K and 2K, up to 8 channels | 1K, 2K and 3K, up to 8 channels
Number of Colors and Catalysts | Up to 10 colors and catalysts | Up to 100 colors and catalysts
Recipe Capacity | 99 | 250
Interface | Windows-based interface | Modern intuitive app-like interface
Remote operation & monitoring | Not available | Full remote monitoring and operation capability

Technical Specifications

• Ratio range: 1:1 to 100:1
• Ratio tolerance: ±1%
• Capability: 1K, 2K and 3K (with positive displacement pump)
• Fluid viscosity range: 1 cPs – 3000 cPs
• Max number of resins: up to 100
• Max number of catalysts/hardeners: up to 100
• Fluid pressure: 250 psi (145 psi with flow sensor)
• Resin flow rate: 3–2000 cc/min
• Catalyst/hardener flow rate: 3–2000 cc/min
• Total flow rate range: 6–4000 cc/min
• Flow tolerance: ±1%
• Trigger response rate: 50 ms (material and flow dependent)
• Wetted parts: stainless steel, PTFE, perfluoro elastomer, UHMW polyethylene
• Isocyanate catalyst compatible: Yes
• Communication protocols: discrete, Ethernet, Profinet, DeviceNet, CC-Link, EtherCat, Modbus
• Number of recipes/jobs: 250
• Weight: approx. 300 lb
• Dimensions: Width 32", Depth 28", Height 74.65"
