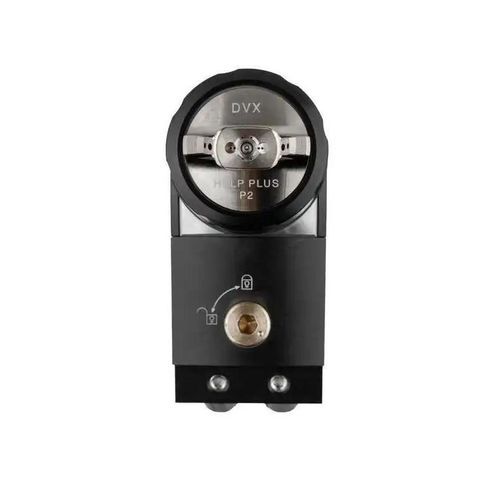

Spraying gun DVX

automaticHVLP

Overview
The Binks DVX automatic air spray gun series features a redesigned fluid body and air caps to reduce turbulence between coating and air during trigger actuation. The result is higher flow rates for faster application, improved transfer efficiency, a highly consistent spray pattern and superior finish quality. DVX guns are suited to low-pressure air spray of liquid coatings including waterborne and solventborne systems, high-solid urethanes, epoxies and enamels.

Key benefits

• Best air-spray finish quality: reduces orange peel and mottling; most consistent pattern on the market; supports a range of materials via P1/P2/P3 pressure air caps and available gravity caps.
• Faster application: high fluid flow and large, consistent pattern for fewer passes; air-cap orientation lock allows extended spray time; easy cleaning reduces downtime.
• Quick-release air cap: hard-anodized retaining ring with quick-release thread (less than one full turn).
• Higher transfer efficiency: reduces material use by ~15% vs non-electrostatic air spray; operates at low and high inlet pressures and can spray at ~2 bar to reduce air consumption.
• Turbulence control: new design eliminates corners that create compression, separation and stagnation zones.

New manifold & back end design
DVX automatic guns incorporate a cam-lock quick-release manifold and more widely spaced fluid and air inlets for simpler installation and maintenance. The redesigned back end supports ratchet or fixed needle travel as standard selections, requires fewer turns for full adjustment, allows easier housing removal for repair and enables fluid-packing replacement without removing the fluid manifold from the body.

FEATURES & OPTIONS

• Air Cap – Single installed: P1, P2, P3 options (HVLP, high-efficiency, conventional).
• Fluid Tip – Single installed: 8 sizes; standard and nitrile options.
• Needle – Single installed: 3 sizes; standard and nitrile options.
• Back End – Adjustable ratchet or fixed; hardened variants available.
• Manifold – 1/4" NPS fluid, 1/8" NPS air connections; options include none, 4-in-1 with gun, low-profile option.
• Indexing Air Cap – Available with or without indexing.
• Tool Kit – Valve tool, Torx driver, tip wrench; push-lock air inlet fittings (8 mm (2), 4 mm); 5 mm wrench key.
• Accessories – Levers, fluid connections, manifold add-ons.

Literature & Media
Product overview, brochure and sell sheet are available on the product page. An embedded product video demonstrates DVX features and performance.

Specifications

• Series name: DVX (automatic air spray gun series).
• Air caps: P1, P2, P3 (supports HVLP, high-efficiency and conventional modes).
• Fluid tip: 8 sizes; standard and nitrile options.
• Needle: 3 sizes; standard and nitrile options.
• Back end options: fixed or adjustable ratchet; hardened variants available.
• Manifold connections: 1/4" NPS fluid, 1/8" NPS air; cam-lock quick-release manifold.
• Spray performance: reduced turbulence design, improved transfer efficiency (~15% material reduction vs non-electrostatic equivalents), capable of spraying at ~2 bar for reduced air consumption.
• Maintenance: redesigned back end for easier service; fluid packing changeable without removing fluid manifold.
• Example part numbers (selected kits): DVXA-P1-08-NPS-F, DVXA-P2-10-NPS-F, DVXA-P3-18-NPS-R, DVXA-P2-16N-NPS-F.
