Ship door P_1H-A60Y
for yachtinteriorA60

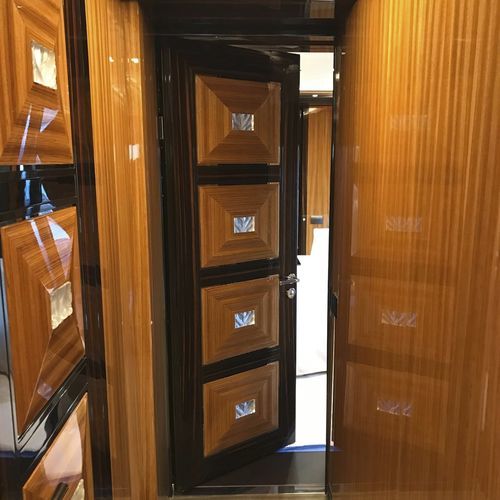

Ship door - P_1H-A60Y - Bimar - for yacht / interior / A60

Ship door - P_1H-A60Y - Bimar - for yacht / interior / A60 - image - 2

Ship door - P_1H-A60Y - Bimar - for yacht / interior / A60 - image - 3

Ship door - P_1H-A60Y - Bimar - for yacht / interior / A60 - image - 4

Ship door - P_1H-A60Y - Bimar - for yacht / interior / A60 - image - 5

Ship door - P_1H-A60Y - Bimar - for yacht / interior / A60 - image - 6

Add to favorites

Compare this product

Characteristics

Application domain: for ships, for yacht
Type: interior, A60
Material: steel
Norms: MED, IMO
Width: 105 cm
(41 in)
Height: 230 cm
(91 in)
Thickness: 56 mm
(2 in)
Hinge number: 3 unit
Weight: 150 kg
(331 lb)

Description

A60 hinged fire doors made by steel/mineral rockwool/steel sandwich A60 rated class. Reference international rules: SOLAS 74/88 Chapter II-2/9 – European Directive 96/98/CE (MED) and further modifications. Classification: A60 rated class fire door, non watertight. Door type: single leaf, hinged type. Leaf construction: sandwich type, steel foil – rock wool and calcium-silicate – steel foil Leaf finishing types: – Galvanized steel (rough) for leaf covering – RAL or NCS painted – PVC pre-coated (several finishing types) The weight refers to the above dimensions (CO 1000×2200 mm). It includes frame and counter-frame weight. That weight doesn’t includes leaf covers. Leaf covering: finishing cover on both leaf sides available. Maximum applicable weight: 30 kg. Door closer: concealed type, closing force EN 2-4 (adjustable) for standard door.EN 3-6 for heavy doors or 41dB type. Lock: stainless steel, no vibrating. Leaf frame (trimlist) finishing: RAL or NCS painted or Stainless steel (satin or polished) Door frame finishing: RAL (standard) or NCS (on request) powder coating. Counter-frame finishing : 1 coat primer (powder coating)
