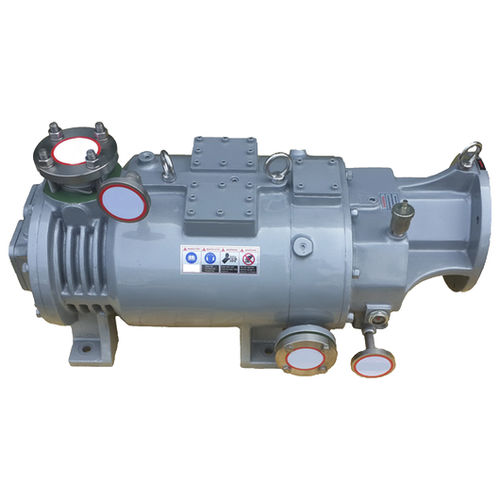

Ship vacuum pump BDRY series
for shipyards

ship vacuum pump
ship vacuum pump
ship vacuum pump
ship vacuum pump
Add to favorites
Compare this product


Characteristics

Application domain
for ships, for shipyards
Flow rate

Min.: 110 m³/h
(3,884.61 ft³/h)

Max.: 1,250 m³/h
(44,143.33 ft³/h)

Weight

190 kg, 290 kg, 370 kg, 580 kg, 900 kg
(418.9 lb, 639.3 lb, 815.7 lb, 1,278.7 lb, 1,984.2 lb)

Description

Screw Vacuum Pump have an inherent disadvantage when it comes to draining and flushing. The exhaust port is small and is not at the lowest point in the Vacuum Pump so liquid will not drain out of the Vacuum Pump. But, the exhaust port of BDRY Vacuum Pump is big and is at the lowest point in the Vacuum Pump so liquid will drain out of the Vacuum Pump smoothly. 2 Gas ballast: The basic principle of ballast is that Non-condensable gas (N2 or air) is admitted into a pump during the gas compression stages. This increases the percentage of non-condensable gas such that the partial pressure of the vapor being pumped is below its saturated vapor pressure. 3 Gear Oil Coolant Jacket: The lubricant oil in the gear box is cooled by a cooling water jacket. No Contamination of Process Stream Deeper Vacuum More Flexible Operation No Effluent No Pollution No Waste Disposal Costs Lower Maintenance Costs Immediate Solvent Recovery at Pump Exhaust Liquid Ring Seal Fluid Supply Effluent Disposal Potential Cavitations High Maintenance & Servicing Cost Vapor Pressure Limiting Vacuum Non Recoverable Condensate Low Capital Cost Traditional Equipment Good Liquid/Solid Handling Rotary Vane Pump Seal Fluid Supply Non Aqueous Effluent Disposal High Maintenance & Servicing Cost Non Recoverable Condensate Vanes Prone to Chemical Attack Intensive Operator Involvement Lower Capital Cost Improved Vacuum Levels No internal lining
