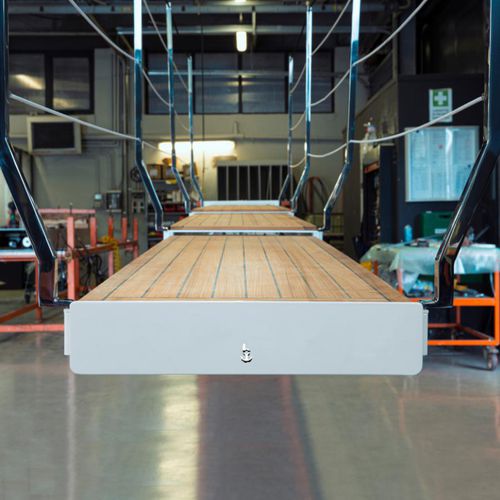

Boat gangway PI 683telescopicretractablemultifunction
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Application domain
- for boat
- Type
- telescopic, retractable, multifunction
- Operation
- remote-controlled, hydraulic
- Structural material
- polished stainless steel
- Surface material
- wooden
- Other characteristics
- with handrails
- Folded length
1,640 mm, 2,355 mm
(64.57 in, 92.72 in)- Maximum length
4,300 mm, 6,500 mm
(169.29 in, 255.91 in)- Width
560 mm, 650 mm
(22 in, 26 in)- Weight
500 kg, 750 kg
(1,102.3 lb, 1,653.5 lb)- Maximum payload
150 kg
(331 lb)
Description
• Retractable telescopic gangway triple stage
• Automatic function for retraction/extension, telescoping and elevation
• Structure made in polished or powder coated stainless steel with rectangular profile
• Solid boardwalk made in teak with anti-skid inserts with optimized width from edge to edge
• Courtesy lighting
• Approx. inclination 15° up/down.
• Aluminium housing box with automatic hatch (not watertight)
• Manual removable stanchions with rope on both sides
• Manual pump for emergency
• Remote and touchpad panel remote control to operate from the cockpit
• Lengths available up to 6,5 mt
