Level sensor LMK 458
pressurefor boatsfor ships

level sensor
level sensor
level sensor
level sensor
level sensor
Add to favorites
Compare this product


Characteristics

Measured value
level, pressure
Application domain
for boats, for ships, for yachts, for offshore platforms, for shipyards, for shipbuilding
Applications
for storage tanks
Other characteristics
hydrostatic

Description

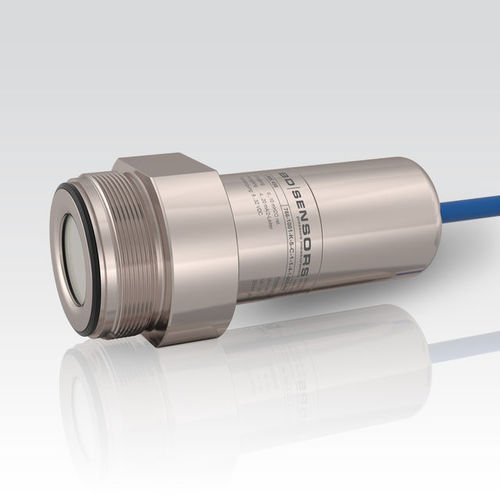

ceramic sensor stainless steel probe Ø 39,5 The hydrostatic probe LMK 458 has been developed for measuring level in service and storage tanks and is as a consequence certificated for shipbuilding and offshore applications. A permissible operating temperature of up to 125 °C and the possibility to use the device in intrinsic safe areas enable to measure the pressure of various fluids under extreme conditions. The basis for the LMK 458 is a capacitive ceramic sensor element designed by BD|SENSORS, which offers a high overload resistance and medium compatibility. Features nominal pressure: 0 ... 40 cmH2O up to 0 ... 200 mH2O accuracy: 0,1 % / 0.25 % / 0.35 % FSO diameter 39.5 mm high overpressure capability high long term stability permissible temperatures up to 125 °C shipping approvals GL (Germanischer Lloyd), DNV (Det Norske Veritas), CCS (China Classification Society) Areas of application marine and shipbuilding Media sewage water, sludge fuels and oils water Optional Features IS-version zone 0 diaphragm pure ceramic (99,9% AI2O3) different housing materials (stainless steel, CuNiFe) screw-in and flange version accessoires e.g. assembling and probe flange, mounting clamp

Catalogs

LMK 458
LMK 458
5 Pages
LMK 458 H
LMK 458 H
5 Pages
