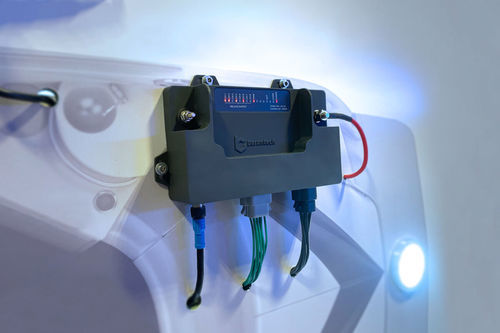

Ship relay control module Cruzo Smart Relay

Connect all your electronic equipment onboard. Our Cruzo Smart Relay acts as a bridge, allowing the panels to control various electronic equipment onboard, such as lights, bilge pumps, blowers, and windlasses. This enhances the overall functionality and convenience offered by your boat. - CSR8/1: (Cruzo Smart Relay 8 CHANNEL VER.1) - NMEA 2000 Compatibility: Ensures easy integration with existing marine networks. - Four 10A Relays & Four 20A Relays: Versatile power management for different loads. - NMEA 2000 Interface: opto isolated. - Battery Connection via M8 Screw: Secure and robust connection for continuous power. - Continuous Current Management: Monitors and manages current flow across all relays. - Status Indicators: LEDs provide clear visual feedback for system status, along with dedicated communication and power LEDs. Status indicating LEDs. - IP67: Built to withstand harsh marine environments. Supply Voltage: 7-30VDC Power Consumption: max 600 mA Load Equivalence Number (LEN): 1 (the CSR8 cannot be powered from NMEA BUS) Current Consumption: 20A max Reverse Polarity Protection: YES Channel Current Measurement Accuracy: +/- 0.5 A Channel Current Measurement Resolution: 10 mA Minimum Current Measurement: 150 mA Programmable Trip Level Resolution: 1A Input Signals Voltage: LOW: 0-1.5V, High: 3.3-12.5V Size (Including Mounting Flanges): 229×146.4×48.5 mm / 9.02×5.76×1.91 in Weight: 960 ± 100 gr Power Studs: DC(+), DC(-) Size: M8, M5 Max. Tightening Torque: 9 Nm, 2.2Nm Environmental Data: IP67 rated for marine environments. Key Features: - 8 channel relay (CSR8/1) - NMEA 2000 compatibility and opto-isolated interface - Four 10A and four 20A relays - Battery connection via M8 screw - Continuous current management and monitoring - Status LEDs for system, communication, and power - Reverse polarity protection - High measurement accuracy and resolution - Robust mechanical design with mounting flanges - IP67 environmental protection
