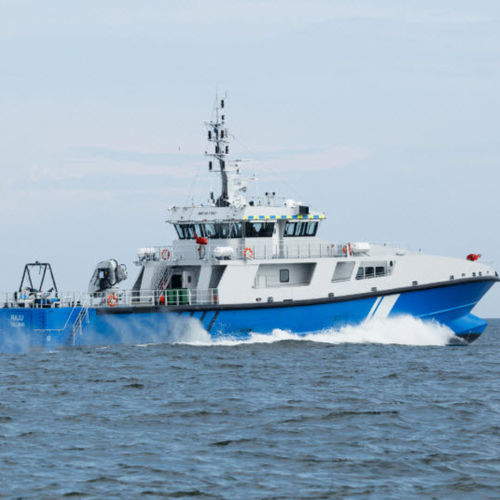

PATROL 45 WP HYBRID
45-metre multifunctional wave-piercing patrol vessel for offshore patrol, search and rescue, pollution combat, fire fighting and hydrographic tasks. The hybrid propulsion plant provides a maximum speed of 27 knots, while economic cruising speed is 10-12 knots. Fully integrated electrical and energy storage system offers the option to run the vessel on a full electrical mode and reach the speed of 10 knots.
Main dimensions
Length LOA 44,6 m
Breadth 8,8 m
Draught 2,6 m
Displacement 235 t
Power 2 x 2000 kW
Speed 27 kn
Cruising speed 10-12 kn
Range (estimated) 3000 nm @ 10 kn
Crew 10 + 18
Tank capacities
Fue 30 000 I
Water 2 000 I
Waste 3 600 I
Ballast 14 500 I
Ambient conditions
Air -35° C / +35°C
Seawater 0° C/+25° C
Propulsion concept
Main engine 2 x MTU 16V4000
Gearboxes 2 x ZF9300
Material of structure
Marine aluminium
