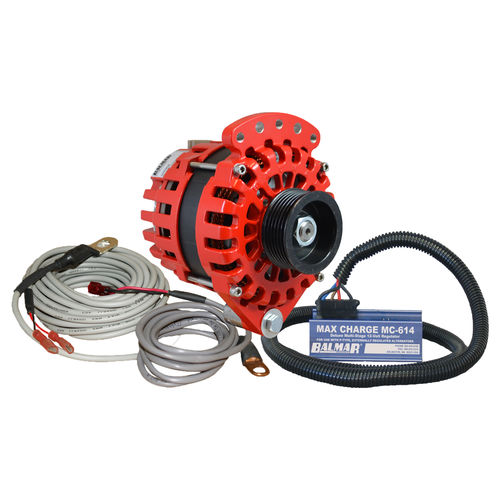

Marine alternator XT-Series & AT-Series

marine alternator
marine alternator
marine alternator
marine alternator
marine alternator
marine alternator
marine alternator
Add to favorites
Compare this product

Characteristics

Application domain
marine

Description

Designed for Recreational Applications 170A or 220A in a Small Case Package Up to 140A at Idle Speeds Patented Smart Ready® Technology Dual Fan Cooling, High Airflow Frame Ideal for Large Battery Banks USCG Title 33, ISO 8846 and SAE J1171 Certified AT-Series and the New XT-Series Alternators from Balmar bring together the latest innovations in alternator design to deliver incredible charging power in a compact, Marine-friendly package. The New XT-Series Alternator family features a state-of-the-art, braided stator wire design to generate exceptional output in the smallest possible area. The XT-Series produces slightly more power than our previous AT-Series 165A design and operates 5o-10oC cooler. In addition, we’ve added Balmar’s Smart Ready® internal regulator technology to provide an additional level of fault tolerance for cruising boaters. Available XT-Series mounting styles have also expanded to include the “Vortec” 9Si design found on many GM gasoline engines. The AT-Series 220A Alternator family features a hairpin-wound stator design which uses densely wound square copper wire to generate up to 220A at 3,000 engine rpm. Hairpin-wound stators feature 96 slots – compared to 36 slots in a traditional S-wound stator – allowing the hairpin-wound stator to develop superior electromagnetic energy and efficiency to other traditional stator designs. XT-Series and AT-Series Alternators may require a Tachometer Signal Stabilizer (Part No. 15-TSS) if your current tach is not adjustable.

Catalogs
