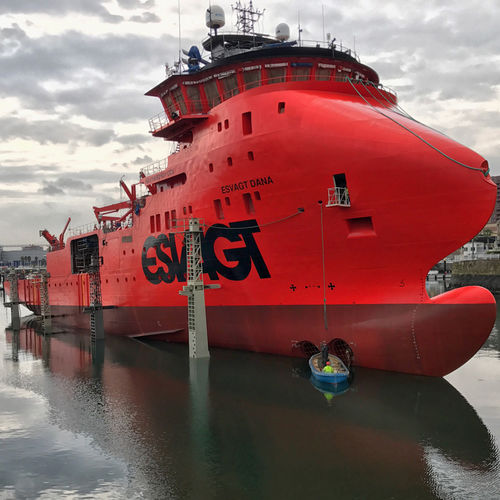

Rescue ship (SAR) ESVAGT DANA

rescue ship (SAR)
rescue ship (SAR)
rescue ship (SAR)
rescue ship (SAR)
rescue ship (SAR)
rescue ship (SAR)
rescue ship (SAR)
Add to favorites
Compare this product


Characteristics

Length

88.4 m (290'00")

DWT

1,000 t (1,102 us ton)

Passenger capacity

76 unit

Width

15 m (49'02")

Draft

5.5 m (18'00")

Speed

18 kt

Motor power

4,200 kW (5,710.4 hp)

Description

TYPE OF SHIP: CREW CHANGE VESSEL OWNER: ESVAGT AS FLAG: DENMARK DELIVERY: 2017 MAIN CHARACTERISTICS Length o.a.: 88,40 metres Length b.p.: 76,80 metres Beam, moulded: 15,00 metres Depth to main deck: 9,25 metres Draft, max: 5,50 metres Deadweight at 5,50 m: 1.000 tons Accommodation: 76 persons Speed : 18,0 knots TANK CAPACITIES Fuel oil: 400 m3 Fresh water: 250 m3 Ballast: 1.500 m3 Sewage: 50 m3 Urea: 50 m3 Lub. oil: 30 m3 PROPULSION Diesel- electric propulsion Output el. motors: 2 x 2.100 ekW at 0-1200 rpm Main Propellers: 2 azimuth CRP Forward tunnel thrusters: 2 x 600 kW el. conv. CPP DECK MACHINERY 1 Deck Crane offshore type: 15 Tons at 18 mts 1 Provision Crane: 2 Tons at 15 mts 2 Windlasses: 10 Tons 4 Mooring Winches with auto tension: 10 Tons 1 Capstan: 10 Tons MOB-Boats hangar for 5 boats and launching/ recovery system of Boats 1 off 13 m FRDC GENERATING SETS AND ELECTRIC EQUIPMENT Diesel generating sets: 4 x 1.375 ekW at 900-1600 rpm Battery energy storage: 2 x 60 ekW Electric propulsion Siemens Blue-Drive PlusC system Emergency generator set: 1 x 420 ekW. at 1.800 rpm DYNAMIC POSITIONING SYSTEM: DP 2 CLASS: DnV-GL, + 1A1, EO, SF, COMF-V(2)C(2), BIS, SPS, ICE E, CLEAN DESIGN, NAUT- OSV(A), DYNPOS-AUTR, BATTERY POWER And additionally compliance with VIBR, BWM-T,
