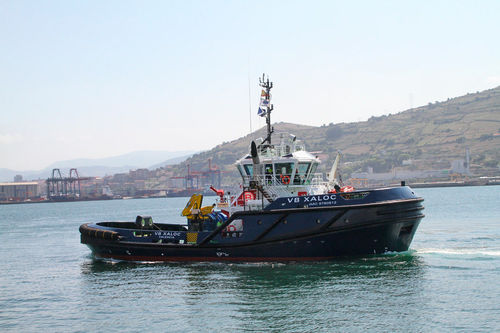

Tugboat VB XALOC

tugboat
tugboat
tugboat
tugboat
tugboat
tugboat
tugboat
Add to favorites
Compare this product


Characteristics

Length

31.57 m (103'06")

Passenger capacity

8 unit

Width

12.8 m (41'11")

Draft

3.6 m (11'09")

Speed

13.6 kt

Motor power

5,600 kW (7,613.9 hp)

Description

TYPE OF SHIP: TUG BOAT MAIN CHARACTERISTICS Length o.a.: 31,57 metres Beam, moulded: 12,80 metres Depth, least moulded: 4,70 metres Draft , moulded (Departure – 190 DWT): 3,58 metres Draft, navigational (Departure – 190 DWT): 6,47 metres Maximum load condition draught (Seagoing): aprox. 6,63 m Crew: 8 men International Tonnage: 497 Speed: 13,6 knots Bollard pull: 79,60 ton Indirect Steering Force (aprox): 10 knots 110 tonnes Indirect Braking Force (aprox): 10 knots 100 tonnes TANK CAPACITIES Fuel oil: 135,7 m3 Fresh water: 43,00 m3 Foam : 8,60 m3 Main Engine Lube oil: 6,20 m3 VSP Lube oil : 5,60 m3 Used oil: 3,90 m3 Oily water: 4,30 m3 Sludge: 3,90 m3 Black water: 6,00 m3 Grey water: 6,00 m3 NAVIGATION AND EXTERNAL COMMUNICATION Equipment GMDSS: One (1) MF/HF Radiotelephone One (1) VHF Radiotelephone Two (2) portable VHF radiotelephone One (1) EPIRB One (1) Radar transponder One (1) NAVTEX One (1) VHF radiotelephone simplex-semiduplex One (1) VHF remote control unit One (1) VHF unit Navigation & Nautical Equipment: Two (2) Radar) One (1) Echo-sounder One (1) GPS One (1) AIS CCTV system One (1) satellite GPS compass PROPULSION Main engines: 2 x MAK Output: 2 x 2800 kW/750 rpm Propellers: VOITH Type: 32R5/265-2 DECK MACHINERY Windlass: Electric Towing Winch: 75 KN @ 8 m/min Brake capacity: 200 ton AUXILIARY GENERATING SETS CATERPILLAR 3 x 175 KVA 400 V, 50 Hz, 1500 rpm FI-FI SYSTEM (WATER/FOAM) Fi-Fi pumps: 2 x 1450 m3 /h, 14 bar Dispersant Pump MISCELLANEOUS Air conditioning plant

Catalogs

No catalogs are available for this product.

See all of Astilleros Zamakona‘s catalogs
