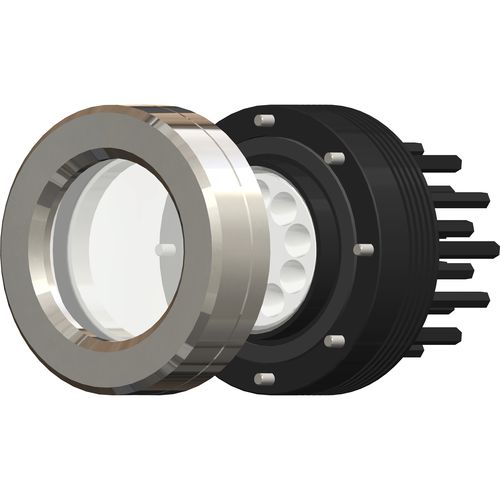

Underwater yacht light PLAQUE MFM09200
LEDsurface-mountmulti-color

underwater yacht light
underwater yacht light
underwater yacht light
underwater yacht light
underwater yacht light
underwater yacht light
underwater yacht light
underwater yacht light
Add to favorites
Compare this product


Characteristics

Application domain
for yachts
Light source
LED
Mounting
surface-mount
Other characteristics
multi-color, stainless steel, aluminum

Description

Power requirement 1 A (white), 3 x 1 A (RGB) Lens angle 50° Optical window 15 mm tempered glass (cofferdam) Luminous flux 14.000 lm (white) White color temperature 6.000 - 10.000 K Operating temperature -10°C - +50°C Casing Aluminium Protection IP 68 Dimensions Φ190x170 mm (without cofferdam) Weight 4.8 kg (without cofferdam) Power Supply Unit MPS91000 Input voltage 120-277 Vac, 50/60Hz Consumption 120W (white), 100W (RGB) Operating temperature -10°C - +50°C Casing ABS Protection IP 56 Dimensions 300 x 220 x 120 mm Weight 3 kg (white), 4 kg (RGB) The ultra-power professional superyacht Underwater LED Lights PLAQUE series with separate power supply units (drivers) are designed for installations with optional welded cofferdams and are designed with 9 or 18 high-power LED arrays and luminous flux of 14.000 lm or 28.000 lm. The white or RGBW lighting control is enabled by using optional momentary switch or DMX512 interfaces MXU01 or MXU03 with built-in ASTEL protocol. Innovative Design High-Grade Aluminium or Stainless Steel Cofferdam with Aluminium Light Body 9 High-Power LEDs Design White or RGB Multi-Color Lighting Tempered Glass Optical Window Vacuum Metalized Reflector Remote Control Digital Dimming DMX512 Network Control Polarity Protection Transient Protection Thermal Protection

VIDEO
