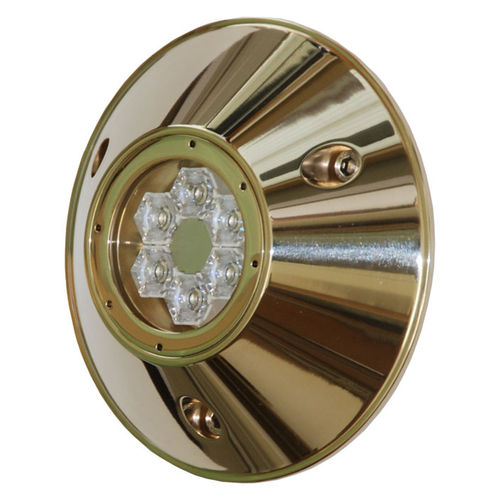

Underwater boat light CONVEX MSR0680
LEDsurface-mountmulti-color

underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
underwater boat light
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Light source
LED
Mounting
surface-mount
Other characteristics
multi-color, bronze, aluminum

Description

Power supply 1.5 A Lens angle 50° Optical window 6mm depth tempered glass Luminous flux max. 3.500 lm White color temperature 6.000 K - 10.000 K Casing Aluminium bronze (AB2) or anodized aluminium Dimensions Ø136 x 56 mm Weight 2.0 kg (bronze) / 0.8 kg (aluminium) Power Supply Unit MPS021500 Power Supply 24 Vdc, max. 1.7 Adc Protection IP-65 Dimensions 127 x 111 x 56 mm Weight 0.3 kg Aluminium Bronze or Anodized Aluminium Casings 6 High-Power LEDs Design White, Blue or Green Tempered Glass Optical Window High-Efficiency Lens Polarity Protection Transient Protection Thermal Protection Low Power Consumption Simple Installation Remote Control Digital Dimming (optional) DMX512 Network Control (optional) The CONVEX series underwater LED lights are designed for standard surface-mount on the stern of the hull. The surface-mount casings enable very simple installation on the hull under water line with only few screws and without making any bigger holes through the hull under water line. All the models are available in aluminium bronze casings (AB2) and anodized aluminium casings in different colors. The lighting is available in white, blue, green, three-color or RGB color versions. The CONVEX series are available with 6 or 18 power LEDs and suitable power supply units.
