Digital flow meter AI.TF7.2turbinefor boatfor ships
Add to favorites
Compare this product
Characteristics
- Type
- digital, turbine
- Application domain
- for ships, for boat, for aquaculture
Description

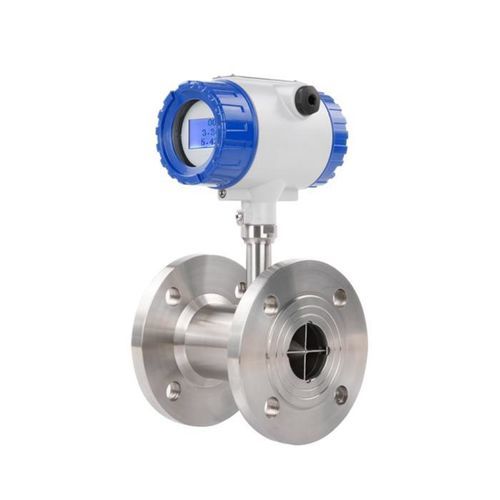

The AI.TF7.2 Series turbine flow meter is the ultimate professional solution for precise volumetric measurement of liquid flow in industrial applications. Its rugged construction and advanced sensor technology ensure long-term reliable measurement with minimal maintenance.
Application Fields
This versatile flow meter is ideal for a wide range of fluids and industrial sectors.
Water and Chemicals: Measurement of tap water, demineralized water, distilled water, and chemicals.
Fuels and Oils: Monitoring fuels (including marine fuels), vegetable oil, thermal oil, and solvents.
Special Applications: Dedicated models for cryogenic fluids, pharmaceuticals, refrigerants, and liquefied gases.
Industrial Processes: Perfect for HVAC systems, plumbing, lubrication, and the food/beverage industry.
Key Features
High Precision and Excellent Repeatability: Standard accuracy of 0.5% (optional down to 0.2%) with repeatability between 0.05% and 0.2% to ensure maximum data quality.
Ideal for Batching: The rotor reacts instantly to flow and stops immediately upon fluid blockage, offering extremely fast response times perfect for mixing and automatic filling processes.
Three-Line HD Display: Low-power LCD screen simultaneously displays total flow rate, instantaneous flow rate, percentage, and unit of measure (selectable between L, m³, Gallon, kg, ton, etc.).
Optional temperature and pressure display.
High Pressure and Temperature Resistance: Designed to withstand extreme pressures up to 42 MPa and fluid temperatures up to 150°C.
Premium Quality Materials: Ultra-durable AISI 304 stainless steel body (optional AISI 316) with precision-milled impeller for high wear resistance and rust resistance.
Technical Specifications
Available Versions: Flanged (DN15-DN200), Male/Female Threaded (DN4-DN80), or Tri-Clamp (DN25-DN50).
Converter Configuration: Available in compact or remote versions, with a 360° rotatable converter for easy readings from any angle.
Output Signals: Pulse, 4-20mA, Alarms.
Digital Communication: RS485 (Modbus), HART.
Flexible Power Supply: Optional dual power supply with integrated 3.6V lithium battery (over 2 years of battery life) or standard 24V DC power supply.
Degree of Protection and Explosion: Explosion-proof certification (Ex d IIC T6 Gb) and IP65/IP67 protection.
Application Fields
This versatile flow meter is ideal for a wide range of fluids and industrial sectors.
Water and Chemicals: Measurement of tap water, demineralized water, distilled water, and chemicals.
Fuels and Oils: Monitoring fuels (including marine fuels), vegetable oil, thermal oil, and solvents.
Special Applications: Dedicated models for cryogenic fluids, pharmaceuticals, refrigerants, and liquefied gases.
Industrial Processes: Perfect for HVAC systems, plumbing, lubrication, and the food/beverage industry.
Key Features
High Precision and Excellent Repeatability: Standard accuracy of 0.5% (optional down to 0.2%) with repeatability between 0.05% and 0.2% to ensure maximum data quality.
Ideal for Batching: The rotor reacts instantly to flow and stops immediately upon fluid blockage, offering extremely fast response times perfect for mixing and automatic filling processes.
Three-Line HD Display: Low-power LCD screen simultaneously displays total flow rate, instantaneous flow rate, percentage, and unit of measure (selectable between L, m³, Gallon, kg, ton, etc.).
Optional temperature and pressure display.
High Pressure and Temperature Resistance: Designed to withstand extreme pressures up to 42 MPa and fluid temperatures up to 150°C.
Premium Quality Materials: Ultra-durable AISI 304 stainless steel body (optional AISI 316) with precision-milled impeller for high wear resistance and rust resistance.
Technical Specifications
Available Versions: Flanged (DN15-DN200), Male/Female Threaded (DN4-DN80), or Tri-Clamp (DN25-DN50).
Converter Configuration: Available in compact or remote versions, with a 360° rotatable converter for easy readings from any angle.
Output Signals: Pulse, 4-20mA, Alarms.
Digital Communication: RS485 (Modbus), HART.
Flexible Power Supply: Optional dual power supply with integrated 3.6V lithium battery (over 2 years of battery life) or standard 24V DC power supply.
Degree of Protection and Explosion: Explosion-proof certification (Ex d IIC T6 Gb) and IP65/IP67 protection.
