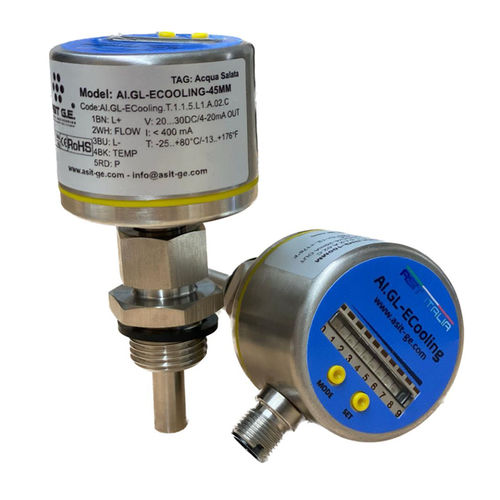

Engine cooling circuit flow switch AI.GL-ECoolingfor ships
Add to favorites
Compare this product
Characteristics
- Applications
- for engine cooling circuits
- Application domain
- for ships
Description
AI.GL-ECooling is a high-performance electronic flow switch designed for precise liquid and gas flow monitoring in demanding industrial environments. Its all-316L stainless steel construction offers unparalleled resistance to wear and corrosion.
Strengths
Seal Plus+ Technology: Designed with a special sealing system that guarantees an IP68 rating, making it suitable for prolonged immersion and extremely humid environments.
Dual Monitoring (Flow and Temperature): Equipped with a clear, three-digit, 7-segment LED display that allows real-time monitoring of both flow rate and fluid temperature.
Simplified Programming: The system is fully user-configurable via integrated buttons (T version) or a potentiometer (P version), allowing switching points to be set in seconds.
Versatility of Materials: In addition to the standard AISI 316L version, the probe is also available in titanium alloy for applications with particularly aggressive fluids.
High Pressure Resistance: Capable of operating in systems with nominal pressures up to 300 bar, ensuring safety and structural stability.
Main Technical Specifications
Setting Range: 3...300 cm/s (Liquids) and 200...3000 cm/s (Gases).
Available Outputs: Choice of relay (SPDT), PNP, NPN, or 4-20mA analog signal for continuous flow measurement.
Power Supply: 20...36V DC or 220V AC (SPDT version only).
Electrical Connection: Standard M12 socket for quick and safe wiring.
Operating Temperature: -25°C to +80°C.
Application Fields
Industrial Automation: Monitoring cooling and lubrication flows.
Gas and Liquid Treatment: Process control in chemical or petrochemical plants.
Safety Systems: Immediate alarm in the event of a lack of flow or exceeding a critical temperature.
Strengths
Seal Plus+ Technology: Designed with a special sealing system that guarantees an IP68 rating, making it suitable for prolonged immersion and extremely humid environments.
Dual Monitoring (Flow and Temperature): Equipped with a clear, three-digit, 7-segment LED display that allows real-time monitoring of both flow rate and fluid temperature.
Simplified Programming: The system is fully user-configurable via integrated buttons (T version) or a potentiometer (P version), allowing switching points to be set in seconds.
Versatility of Materials: In addition to the standard AISI 316L version, the probe is also available in titanium alloy for applications with particularly aggressive fluids.
High Pressure Resistance: Capable of operating in systems with nominal pressures up to 300 bar, ensuring safety and structural stability.
Main Technical Specifications
Setting Range: 3...300 cm/s (Liquids) and 200...3000 cm/s (Gases).
Available Outputs: Choice of relay (SPDT), PNP, NPN, or 4-20mA analog signal for continuous flow measurement.
Power Supply: 20...36V DC or 220V AC (SPDT version only).
Electrical Connection: Standard M12 socket for quick and safe wiring.
Operating Temperature: -25°C to +80°C.
Application Fields
Industrial Automation: Monitoring cooling and lubrication flows.
Gas and Liquid Treatment: Process control in chemical or petrochemical plants.
Safety Systems: Immediate alarm in the event of a lack of flow or exceeding a critical temperature.
Catalogs
AI.GL-ECooling
6 Pages
