Gear flow meter AI.MMPV

marinefor shipsfor aquaculture

The AI.MMPV series is the ideal solution for those requiring robust, precise measurement that is completely independent of power. Thanks to its mechanical totalizer, this oval gear meter is perfect for installation in harsh or remote environments, ensuring constant monitoring of fuels and oils.

Strengths
Energy Independence: The mechanical reading system requires no batteries or external power, eliminating downtime due to electrical problems.
Unwavering Accuracy: Oval wheel technology is extremely reliable and unaffected by changes in temperature, viscosity, or fluid pressure.
Space-Saving Design: Unlike turbine meters, the AI.MMPV can be mounted in small spaces and does not require straight upstream or downstream runs to function properly.

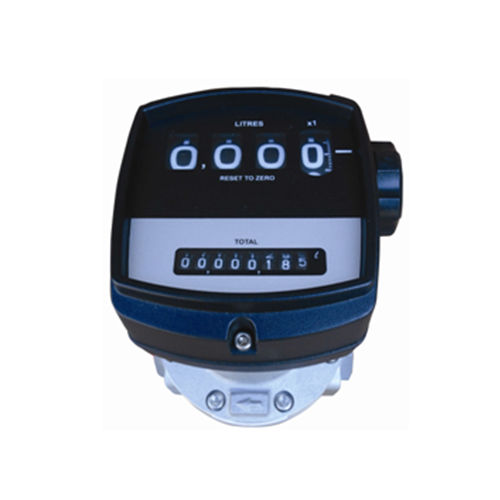

Clear and Dual Readout: Equipped with a mechanical display with a resettable 4-digit partial counter (for checking individual refuelings) and a non-resettable 8-digit total counter.

Technical Specifications
Flow Rate Range: 10 to 1500 l/min (depending on model)
Temperature Range: -40°C to +80°C
Meter Body: Aluminum (also available in stainless steel up to the 2" model).
Rotor Material: High-strength PPS (Polyphenylene Sulfide).
Seals: Viton.
Maximum Viscosity: Up to 1000 cPs.

Applications Ideal
Designed for the transfer and monitoring of oils, diesel fuel, naphtha, and heavy fuel oil.
Transportation: Refueling trucks, mining, construction, and military vehicles.
Marine Industry: Monitoring onboard fuel consumption and port refueling.
Energy Management: Monitoring fuel consumption for boilers and generators.
Industry: Dispensing hydraulic fluids, lubricants, and test benches.

Installation Flexibility
The AI.MMPV series is available in various sizes, with connections ranging from 1" to 4", to adapt to any pipe diameter and flow rate required by your system.
