Digital flow meter AI.FFSonic.2P

marinefor shipsfor aquaculture

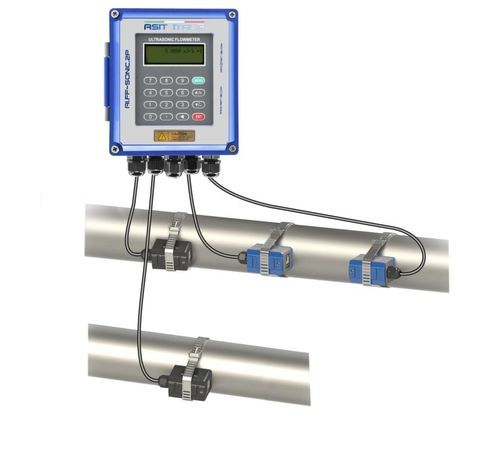

AI.FFsonic.2P is the ultimate professional solution for precise liquid flow measurement in closed ducts. Based on transit-time ultrasonic technology, this system ensures accurate measurements without interrupting flow or cutting pipes, thanks to its clamp-on transducers.

Why choose AI.FFsonic.2P?
Non-invasive installation: Thanks to external sensors (clamp-on), installation is quick and requires no downtime or hydraulic modifications.
Advanced Digital Technology: The system integrates a DSP (Digital Signal Processing) processor that ensures high noise immunity and excellent signal stability.
Extreme versatility: Supports pipes from 15 mm to 6000 mm in diameter and fluids with temperatures from -30°C to +160°C (with high-temperature sensors).
Complete monitoring: View instantaneous and total flow rate and fluid velocity in real time on the backlit alphanumeric display.

Main Technical Specifications
Pipe Diameter: 15 mm ÷ 6000 mm
Overall Accuracy: ± 1%
Protection: IP67 Enclosure / IP68 Transducers
Outputs: 4-20 mA, RS485 (Modbus RTU/ASCII), Relay, Pulse OCT
Data Logger: Integrated (up to 22 storable variables)
Power Supply: Multi-power supply 85-264 Vac or 8-36 Vdc
Interface: Italian / English

Common Applications
This instrument is ideal for a wide range of industrial sectors:
Water Management: Aqueducts, sewerage, leak monitoring, and seawater.
Process Industries: Chemical, petroleum, pharmaceutical, and food.
Energy: Thermoelectric and hydroelectric power plants.
HVAC: Thermal energy calculation via slot for PT100 probes (optional).

Technical Note
The device is designed to calculate thermal energy by connecting two 3-wire PT100 probes.
