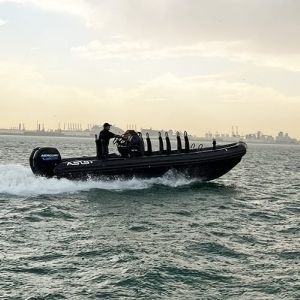

Patrol boat 6.5M

outboardaluminumrigid hull

Overview
ASIS Boats designs and supplies rigid-hulled inflatable military boats (RHIBs) engineered for operational reliability, extended endurance and modular mission fit. Models range from compact fully inflatable craft to large aluminium D-tube platforms, suited to interdiction, patrol, riverine and ship-board launch roles.

Key features

• Military-grade construction: aluminium (FoamShield hull®), fiberglass (Air Hull®) or fully inflatable hull options
• Tube options: air-filled or Hyb Foam® / foam-filled collars for enhanced survivability
• Propulsion variants: outboard, inboard, stern-drive or water-jet (model dependent)
• Custom seating and storage: bucket seats, benches, shock-mitigating seats, leaning posts
• Integrated systems: navigation, comms and C4ISR suites; tactical lighting and weapon mount provisions
• Optional ballistic protection and armouring panels; amphibious wheel systems available on selected sizes

Main applications

• Anti-piracy and VBSS operations — high-speed, long-range interdiction platforms
• Navy ship-board and shore boats — davit launch/recovery, stern-notch compatibility and shock mitigation
• Riverine operations — shallow-draft, highly manoeuvrable configurations with troop disembarkation arrangements
• Special operations — high-performance, low-signature craft capable of mission-specific fit-outs
• Coast guard and SAR — interception, patrol and extended-range mission variants

Design & Customisation
Each boat is built-to-order and configurable for mission requirements: tube type (air or foam), hull material, propulsion, deck layout, seating, weapon mounting, shock-mitigation systems, communications suites and armour. Production emphasises proven hull forms, rapid manufacture and thorough testing to ensure mission readiness.

Technical specifications (select models)

• Fiberglass - 14 M Cabin
  Length Overall: 15.1 m – 49 ft 6 in
  Beam Overall: 3.85 m – 12 ft 8 in
  Lightship Weight: 9,400 kg
  Payload: 3,045 kg
  Collar: Air or Foam
  Tube Diameter: 0.6 m
  Rec. Power: 4×400 Hp
  Max. Power: 4×500 Hp
  Max. Speed: 103 km/h – 64 mph
  Fuel Capacity: 420 US Gal – 1,600 L
  Pax: 15
  Propulsion: Outboard / Inboard
  Classification: B
• Fiberglass - 12 M Cabin
  Length Overall: 12.2 m – 40 ft
  Beam Overall: 3.75 m – 12 ft 4 in
  Lightship Weight: 4,976 kg
  Payload: 2,742 kg
  Collar: Air or Foam
  Tube Diameter: 0.56 m
  No of Air Chambers: 9
  Rec. Power: 3×350 Hp
  Max. Power: 3×400 Hp
  Max. Speed: 105 km/h – 65 mph
  Fuel Capacity: 298 US Gal – 1,130 L
  Pax: 15
  Propulsion: Outboard / Inboard
  Classification: B
• Fiberglass - 9.5 M
  Length Overall: 9.7 m – 31 ft 10 in
  Beam Overall: 3.17 m – 10 ft 5 in
  Lightship Weight: 2,580 kg
  Payload: 1,950 kg
  Tube Diameter: 0.56 m
  Rec. Power: 2×250 Hp
  Max. Power: 2×400 Hp
  Max. Speed: 121 km/h – 75 mph
  Fuel Capacity: 197 US Gal – 746 L
  Pax: 15
  Propulsion: Outboard / Inboard
  Classification: B
• D-Tube Aluminium - 17 M
  Length Overall: 17.2 m – 56 ft 5 in
  Beam Overall: 5.2 m – 17 ft 1 in
  Lightship Weight: 18,000 kg
  Payload: 4,250 kg
  Rec. Power: 2×1,150 Hp
  Max. Speed: 81 km/h – 50 mph
  Fuel Capacity: 792 US Gal – 3,000 L
  Pax: 25
  Propulsion: Outboard / Inboard
• D-Tube Aluminium - 13 M
  Length Overall: 14 m – 45 ft 11 in
  Beam Overall: 3.9 m – 12 ft 10 in
  Lightship Weight: 6,765 kg
  Payload: 2,315 kg
  Collar: Hyb Foam®
  Rec. Power: 3×400 Hp
  Max. Speed: 109 km/h – 68 mph
  Fuel Capacity: 317 US Gal – 1,200 L
  Pax: 18
• Fully Inflatable - 6 M
  Length Overall: 6.0 m – 19 ft 8 in
  Beam Overall: 2.34 m – 7 ft 8 in
  Lightship Weight: 363 kg
  Payload: 1,350 kg
  Collar: Air only
  Rec. Power: 50 Hp
  Max. Speed: 24 km/h – 15 mph
  Pax: 12
• Compact fully inflatable range (2.8–5.1 m)
  Various portable models with lightship weights ~146–316 kg, tube diameters 0.45–0.61 m, recommended power 20–70 Hp, speeds 17–28 km/h and pax 4–11. Typical features: removable aluminium floors, foldable storage and air-only tubes.
• Accessories & Options (select)
  Aluminium bow reinforcement, flat foam push bow, shallow-draft water-jet, shock-mitigating consoles, weapon mounts, suspension seats, foam tubes, deck track systems, C4ISR suites, self-righting systems, davit launch/recovery and stern-notch compatibility.
